  • MSRP

Destination Charge $795

Dealer sets the actual destination charge, your price may vary.

Specifications and pricing are subject to change.

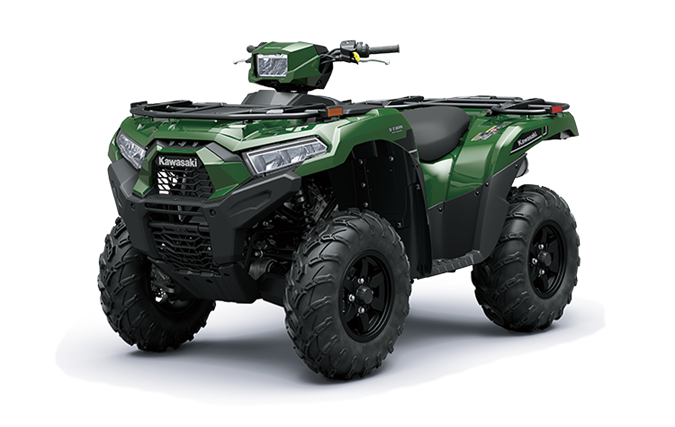

Timberline Green

Timberline Green

Powerful 749cc, v-twin, four-stroke
4.3” full-colour
TFT meter
Engine 749cc, liquid-cooled, 4-stroke, SOHC 4-valve-per-cylinder 90° V-twin
Bore x Stroke 85.0 x 66.0 mm
Compression Ratio 9.3:1
Fuel System Fuel injection: ø34 mm x 2
Ignition Battery & coil (transistorized ignition)
Starting Electric
Lubrication Forced lubrication, wet sump
Transmission Dual range CTV with reverse
Final drive 2WD/4WD, shaft
Frame Double cradle, high-tensile tubular steel
Front Suspension / Wheel Travel Double wishbone with adjustable preload / 175 mm (6.9 in)
Rear Suspension / Wheel Travel Double wishbone with adjustable preload / 189 mm (7.4 in)
Rake / Trail 2° / 10 mm
Steering Angle (L/R) 47° / 47°
Front Tires AT 25 x 8-12
Rear Tires AT 25 x 10-12
Front Brakes Dual ø200 mm discs with two-piston calipers
Rear Brake Enclosed wet multi-plate
Parking Brake Enclosed wet multi-plate
Dimensions (LxWxH) 2,185 x 1,170 x 1,210 mm (86.0 x 46.0 x 47.6 in)
Wheelbase 1,285 mm (50.6 in)
Road Clearance 228/245 mm (standard/max preload) (9.0/9.6 in (standard/max preload))
Seat Height 895 mm (35.2 in)
Curb Mass** 321 kg (708 lb)
Fuel Capacity 19 litres
Tread (L/R) 940 mm (37.0 in) / 905 mm (35.6 in)
Turning Radius 3.2 m (10.5 ft)
Towing Capacity 567 kg (1,250 lb)
Instrumentation 4.3” high-grade full-colour TFT LCD screen with digital speedometer, 2WD/4WD drive indicator, fuel gauge, odometer, dual trip meters, dual hour meter, clock (12h/24h), battery voltage, Kawasaki service reminder, oil change reminder, Bluetooth Indicator, and a range of indicators and warning lamps
Warranty 12 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2020 Canadian Kawasaki Motors, Inc.

Specifications subject to change.
