MODEL SPECS |
On-demand 2WD/4WD with
dual-mode differential

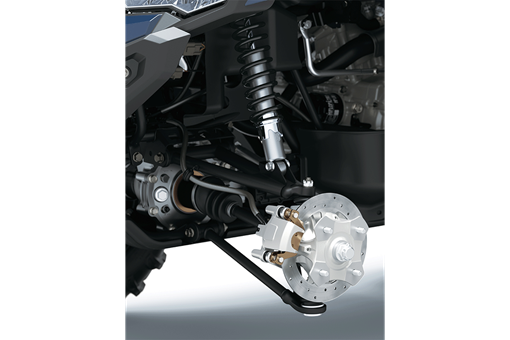

Independent
4-wheel suspension

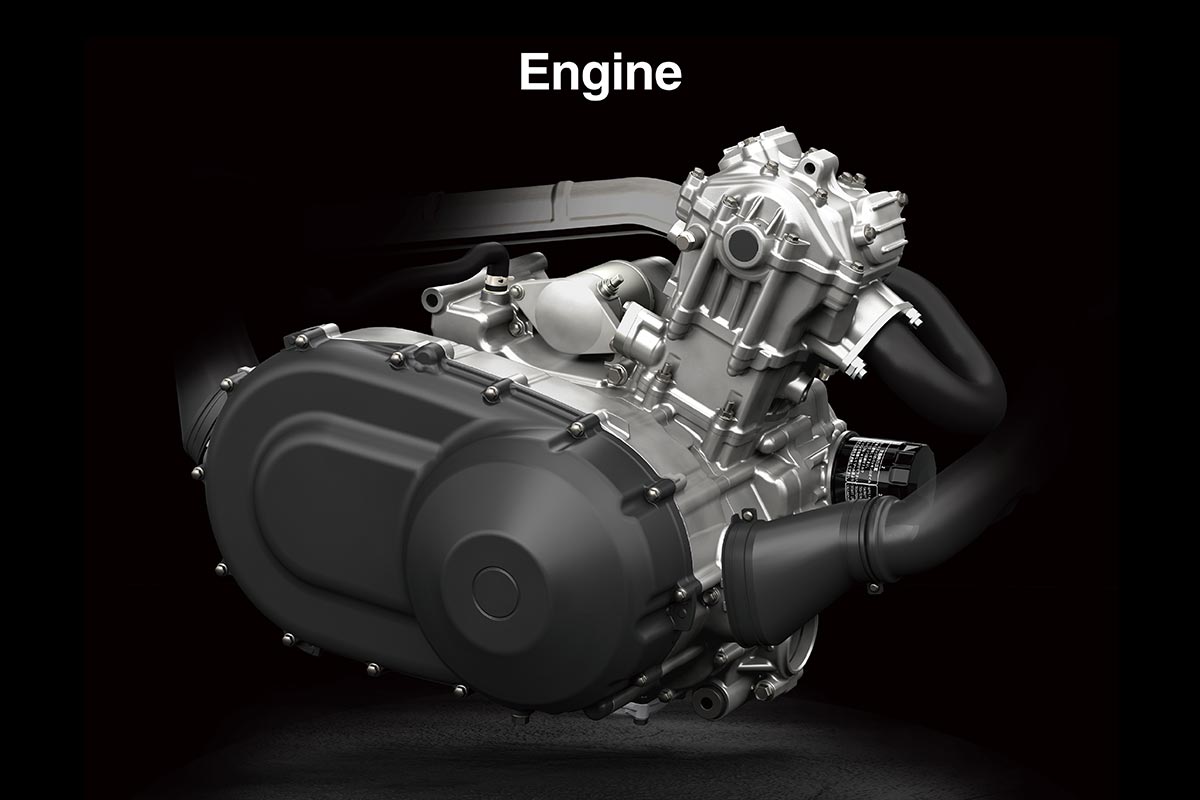

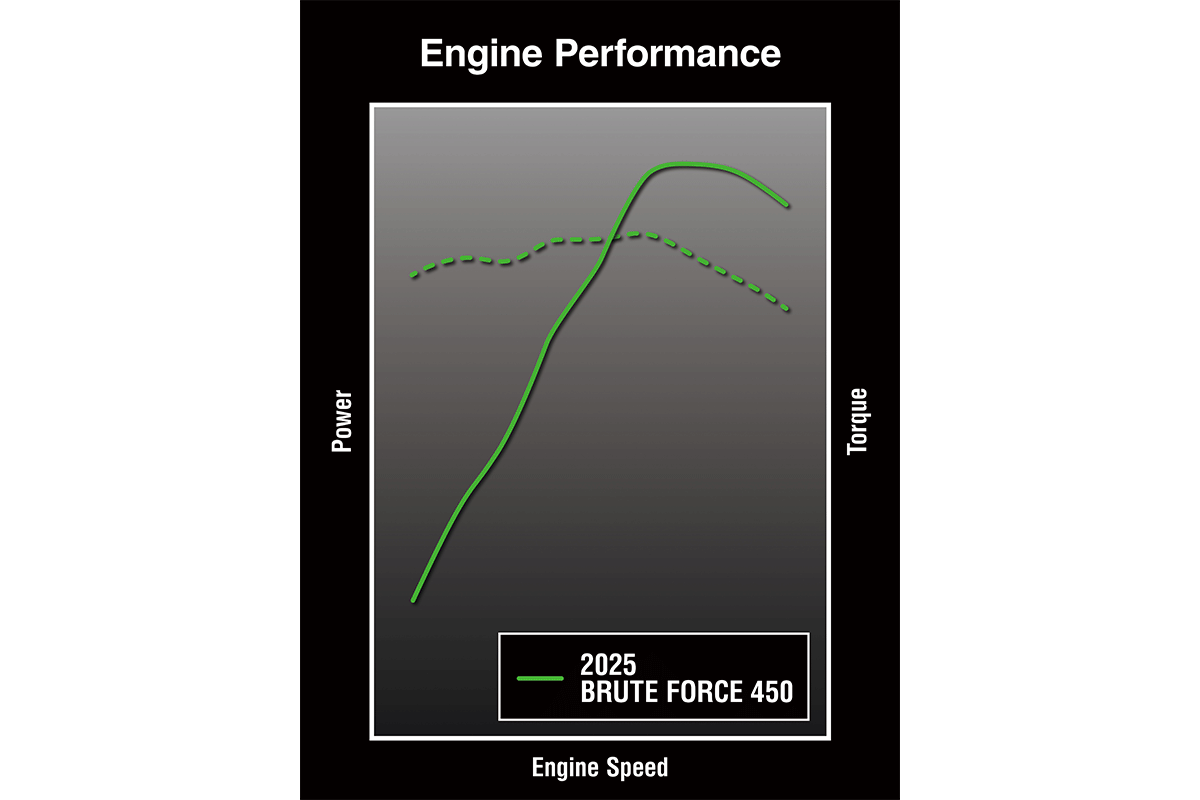

| Engine | 443cc, liquid-cooled, 4-stroke, SOHC 4-valve-per-cylinder single |
| Bore x Stroke | 89.0 x 71.2 mm |
| Compression Ratio | 9.1:1 |
| Fuel System | Fuel injection: ø38 mm x 1 |
| Ignition | Engine control module |
| Starting | Electric |

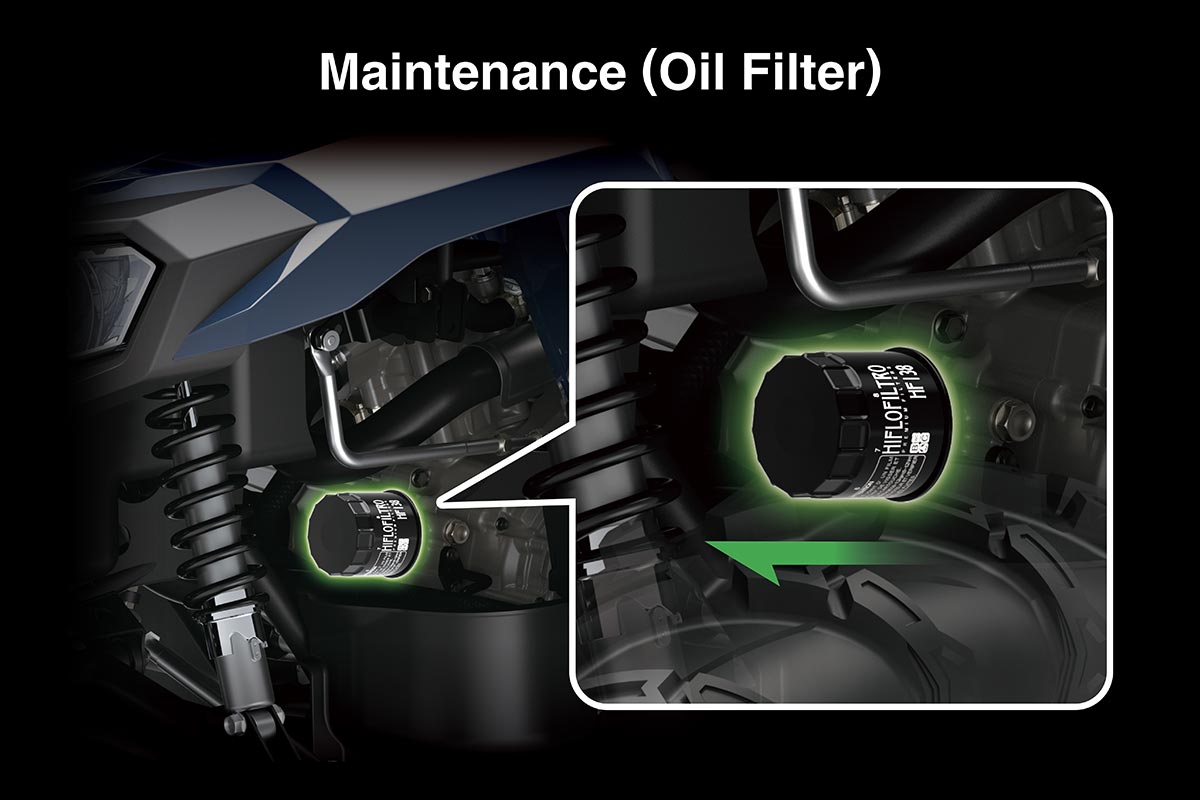

| Lubrication | Forced lubrication, wet sump |
| Transmission | Dual-range (high/low) CVT with reverse |
| Final drive | 2WD/4WD, shaft, dual-mode differential |
| Frame | Double cradle, high-tensile tubular steel |

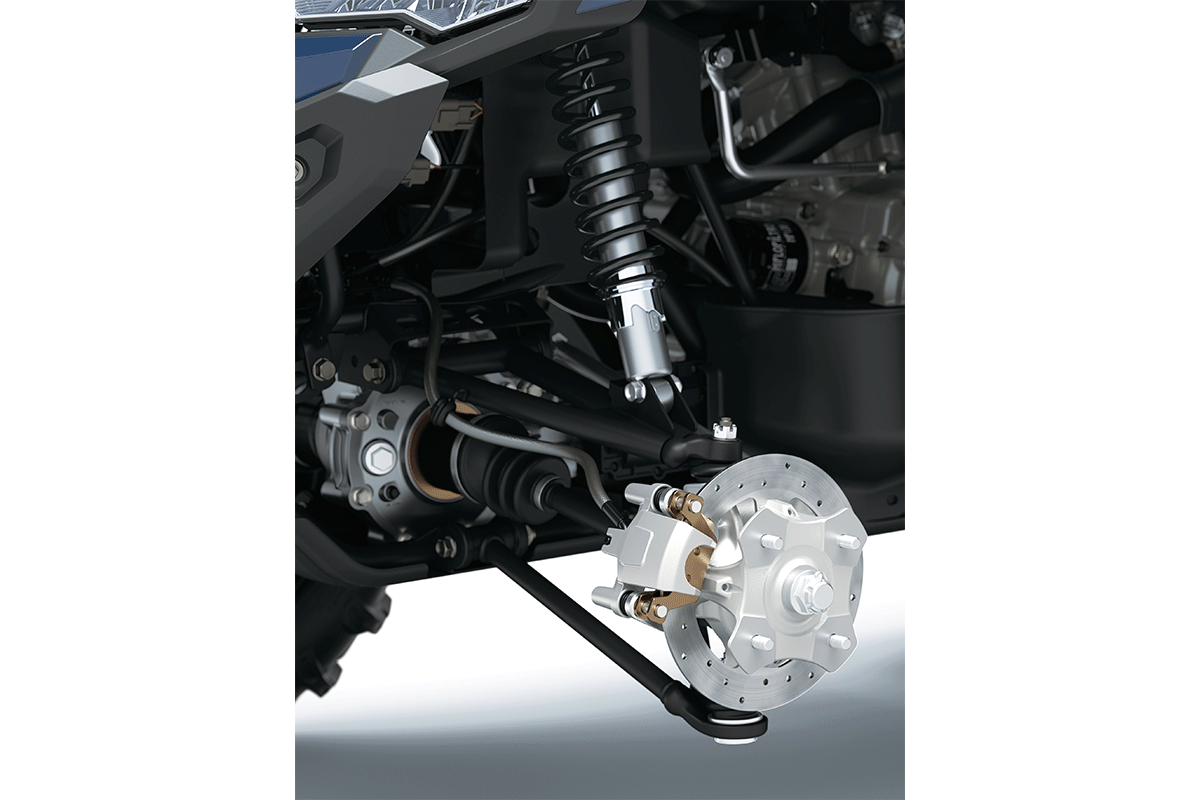

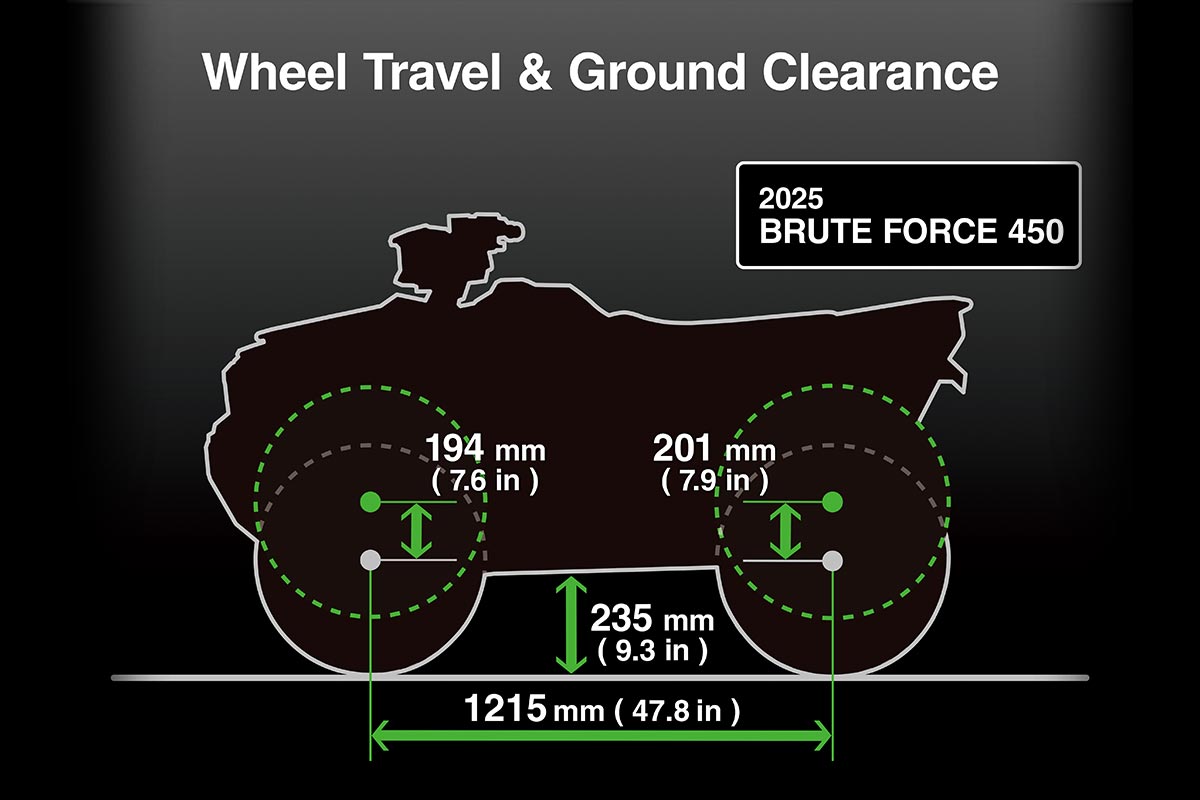

| Front Suspension / Wheel Travel | Dual A-arm with adjustable preload / 194 mm (7.6 in) |

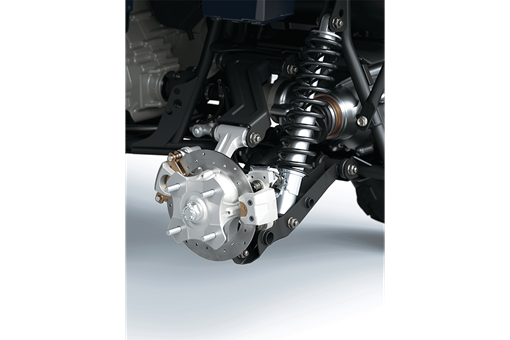

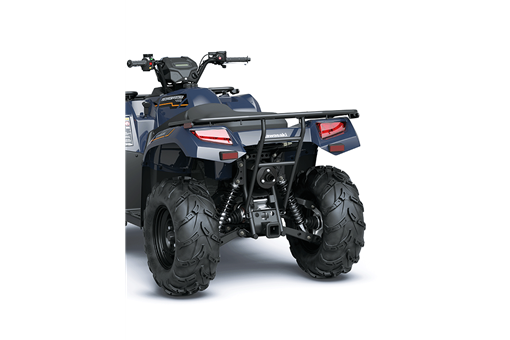

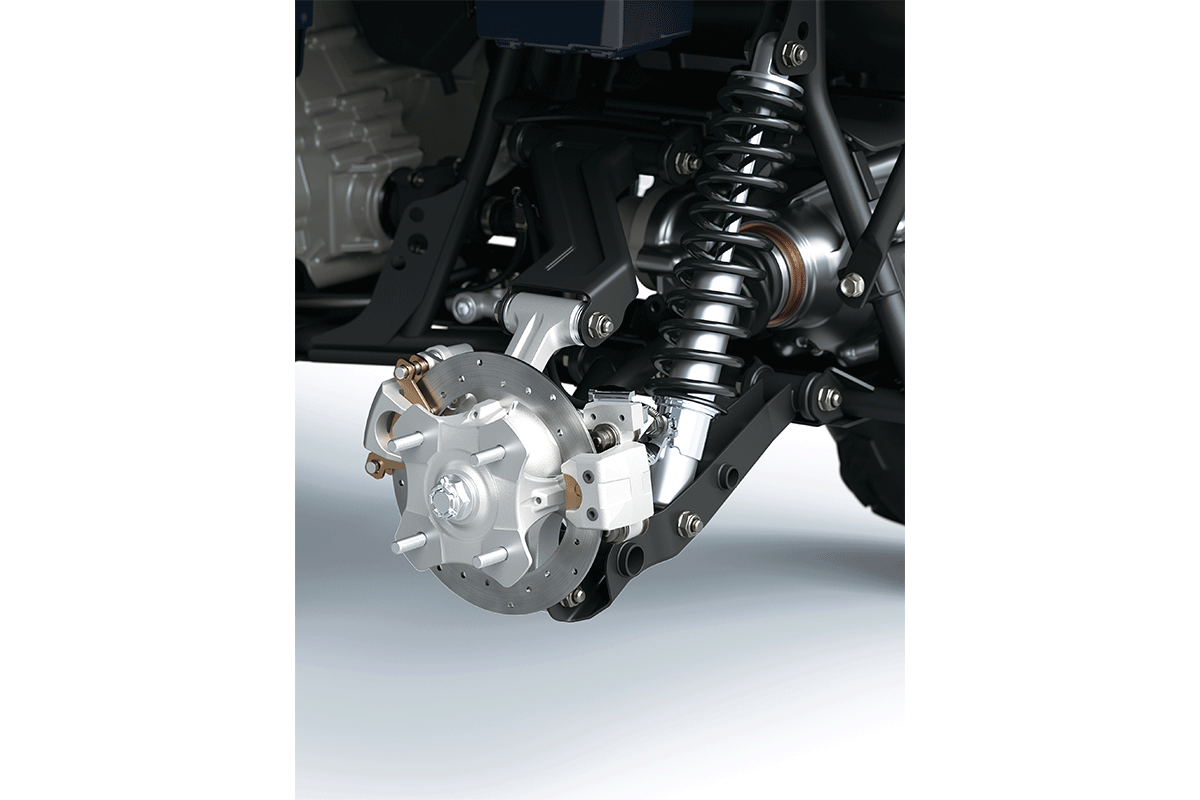

| Rear Suspension / Wheel Travel | Dual A-arm with adjustable preload / 201 mm (7.9 in) |
| Rake / Trail | 2.4° / 11 mm |
| Steering Angle (L/R) | 42° / 42° |

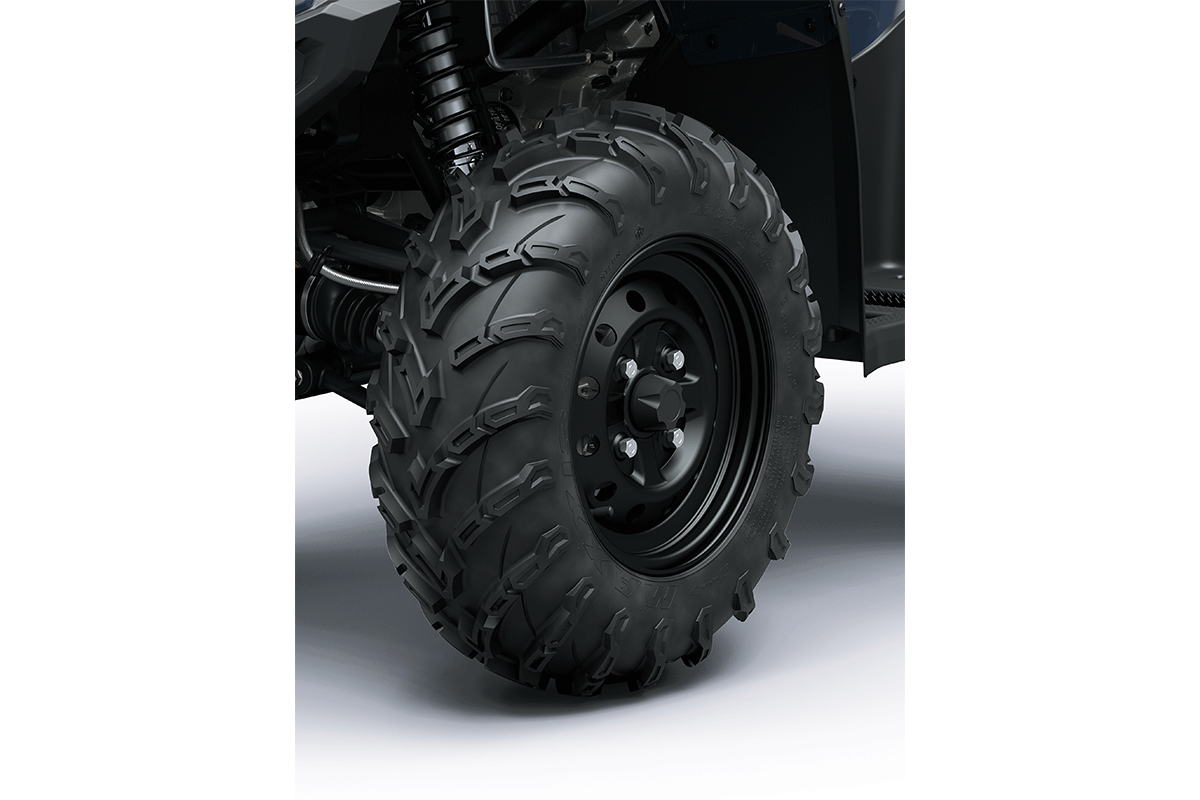

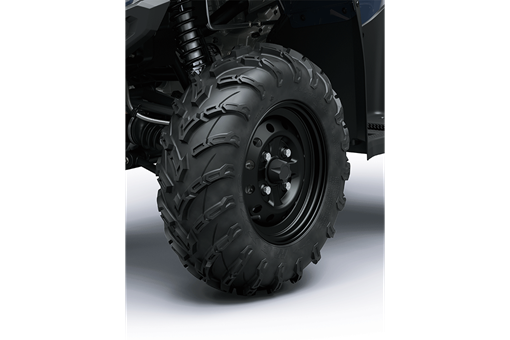

| Front Tires | MAXXIS AT 24 x 8-12 |
| Rear Tires | MAXXIS AT 24 x 10-12 |
| Front Brakes | Dual ø202 mm discs with single-piston calipers |
| Rear Brake | ø202 mm disc with single-piston caliper |
| Parking Brake | Mechanical (engages rear brake) |
| Dimensions (LxWxH) | 2,035 x 1,110 x 1,185 mm (80.1 x 43.7 x 46.7 in) |
| Wheelbase | 1,215 mm (47.8 in) |

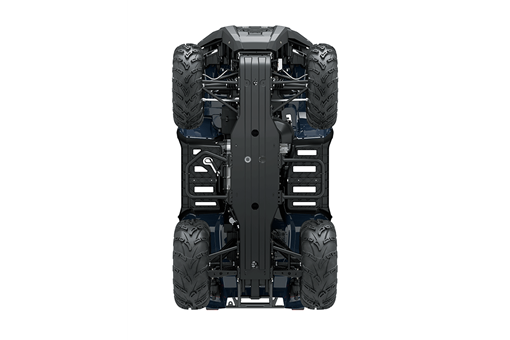

| Road Clearance | 235 mm (9.3 in) |

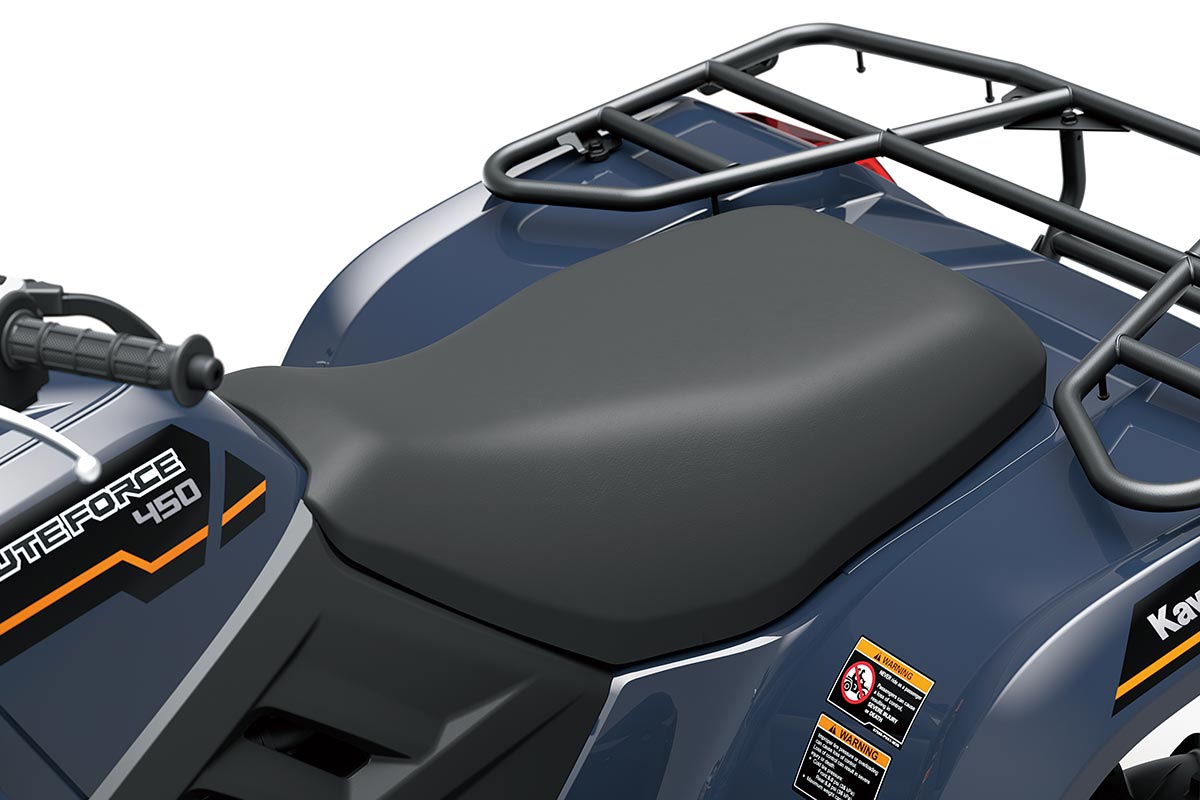

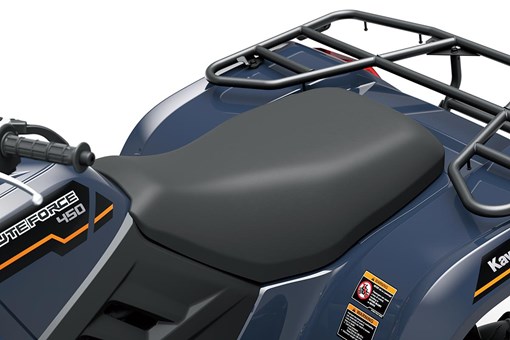

| Seat Height | 880 mm (34.6 in) |
| Curb Mass** | 310 kg (683 lb) |
| Fuel Capacity | 16 litres |
| Tread (L/R) | 910 mm (35.8 in) / 869 mm (34.2 in) |

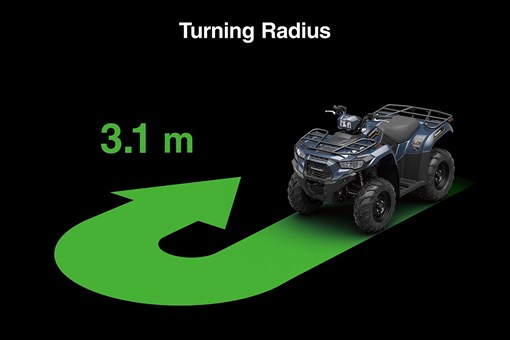

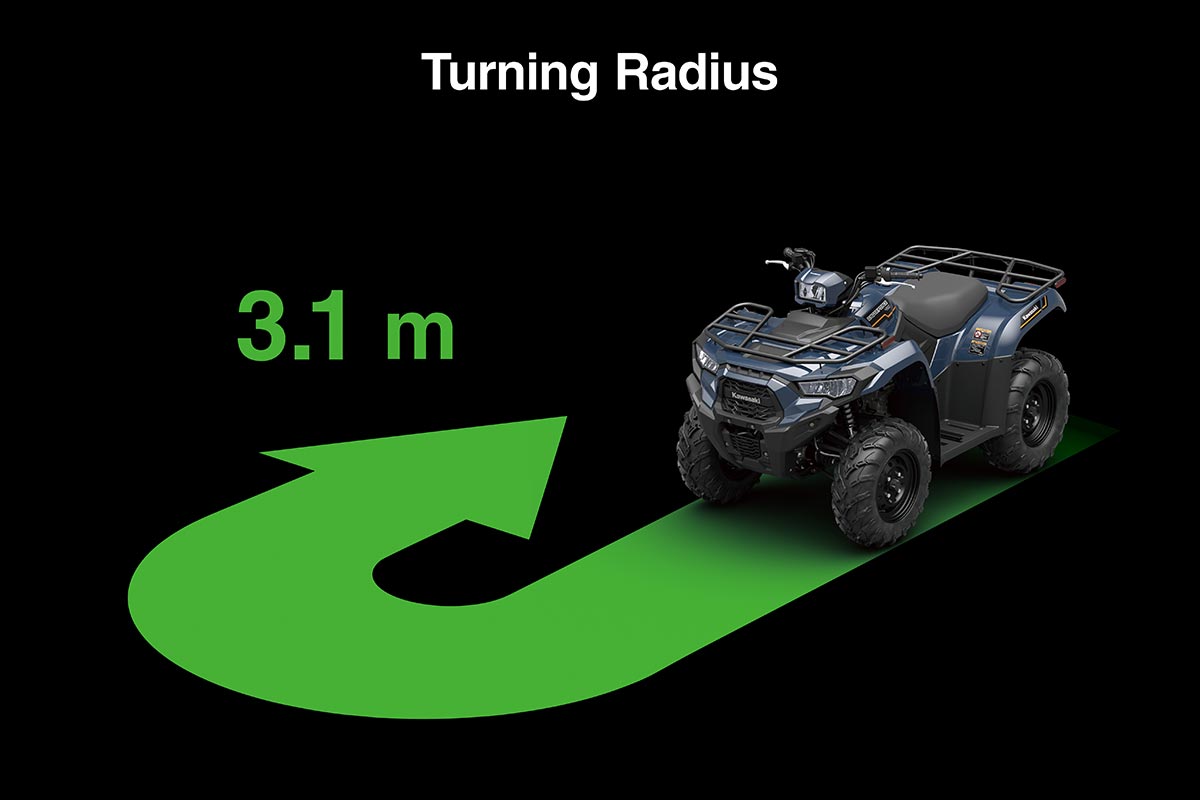

| Turning Radius | 3.1 m (10.2 ft) |
| Towing Capacity | 476 kg (1,050 lb) |

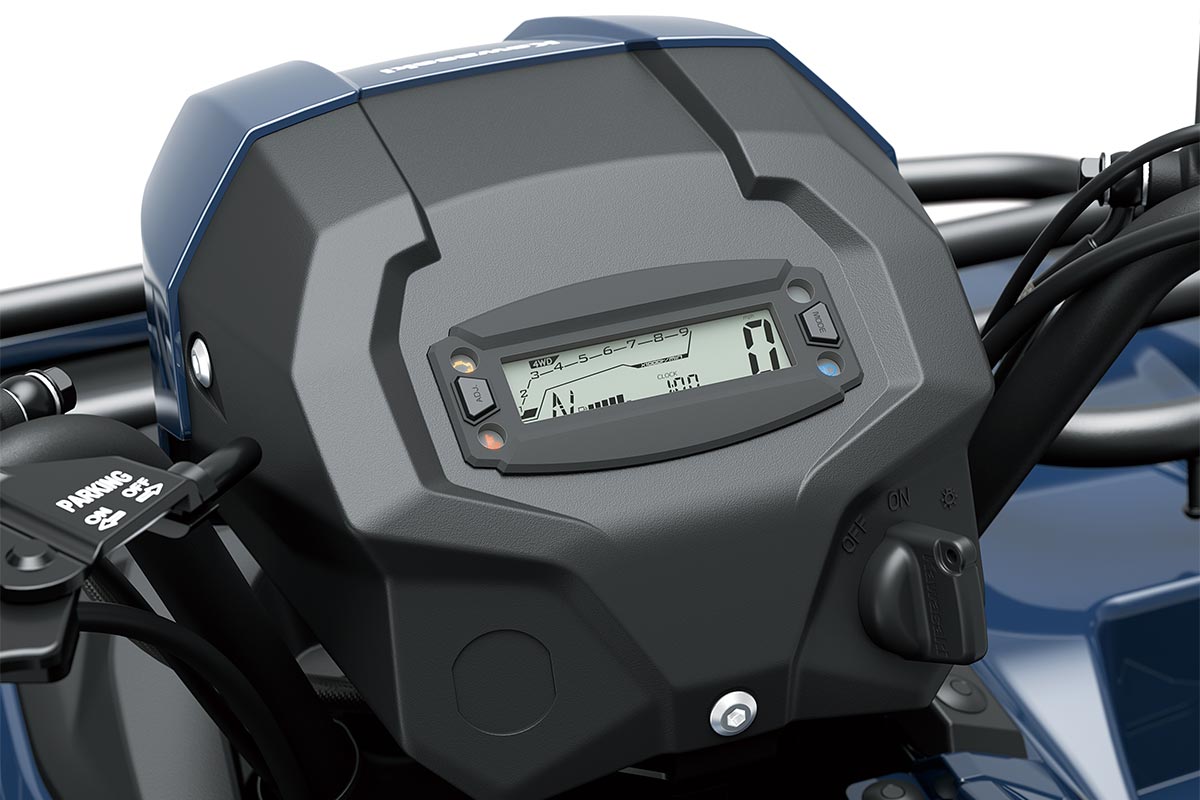

| Instrumentation | Speedometer, tachometer, gear position indicator, fuel gauge, clock, odometer, hour meter, trip meter, differential lock/4WD indicator, and a number of indicator lights |
| Warranty | 12 months |
| Kawasaki Protection Plus | 12 / 24 / 36 / 48 months |
**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2020 Canadian Kawasaki Motors, Inc.
Specifications subject to change.
