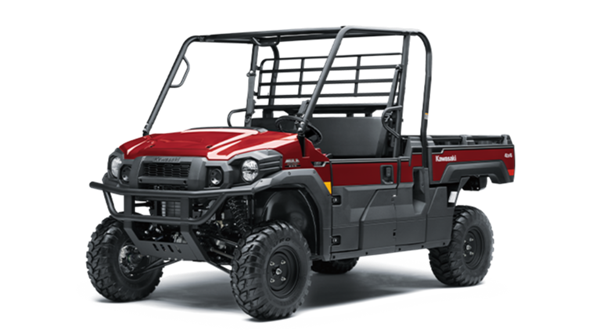

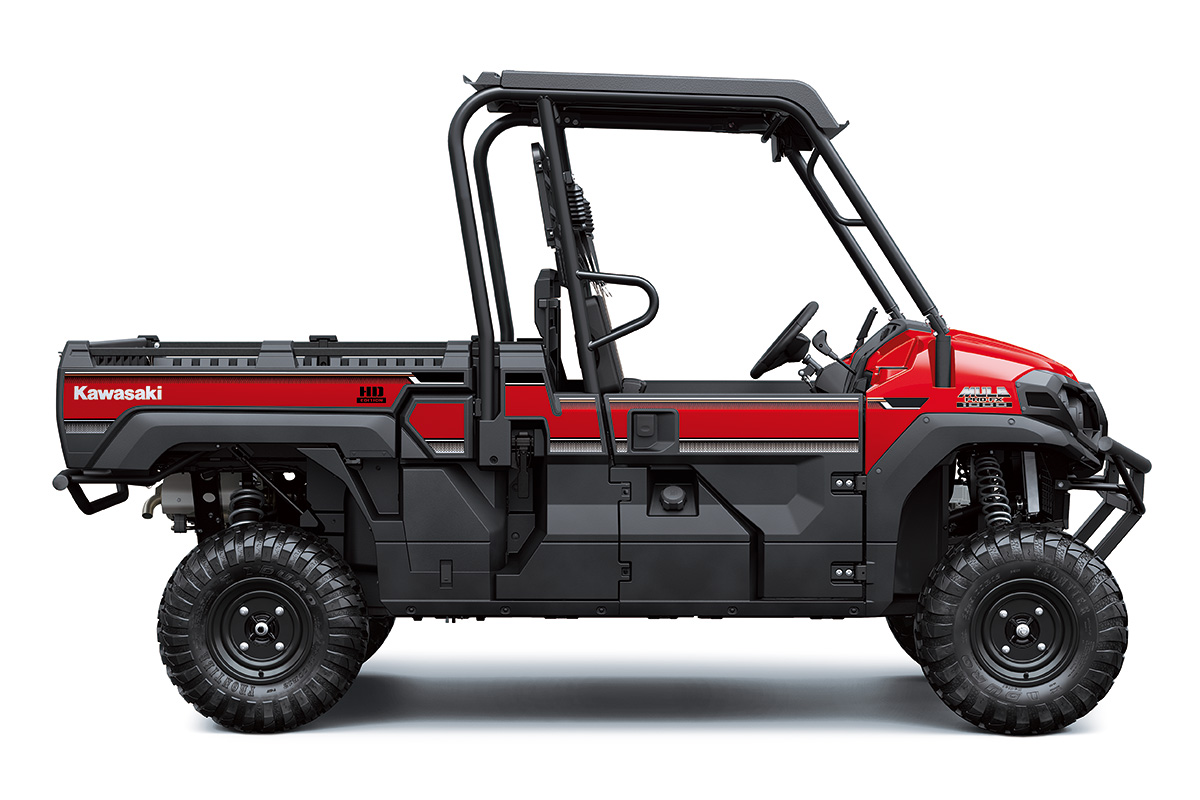

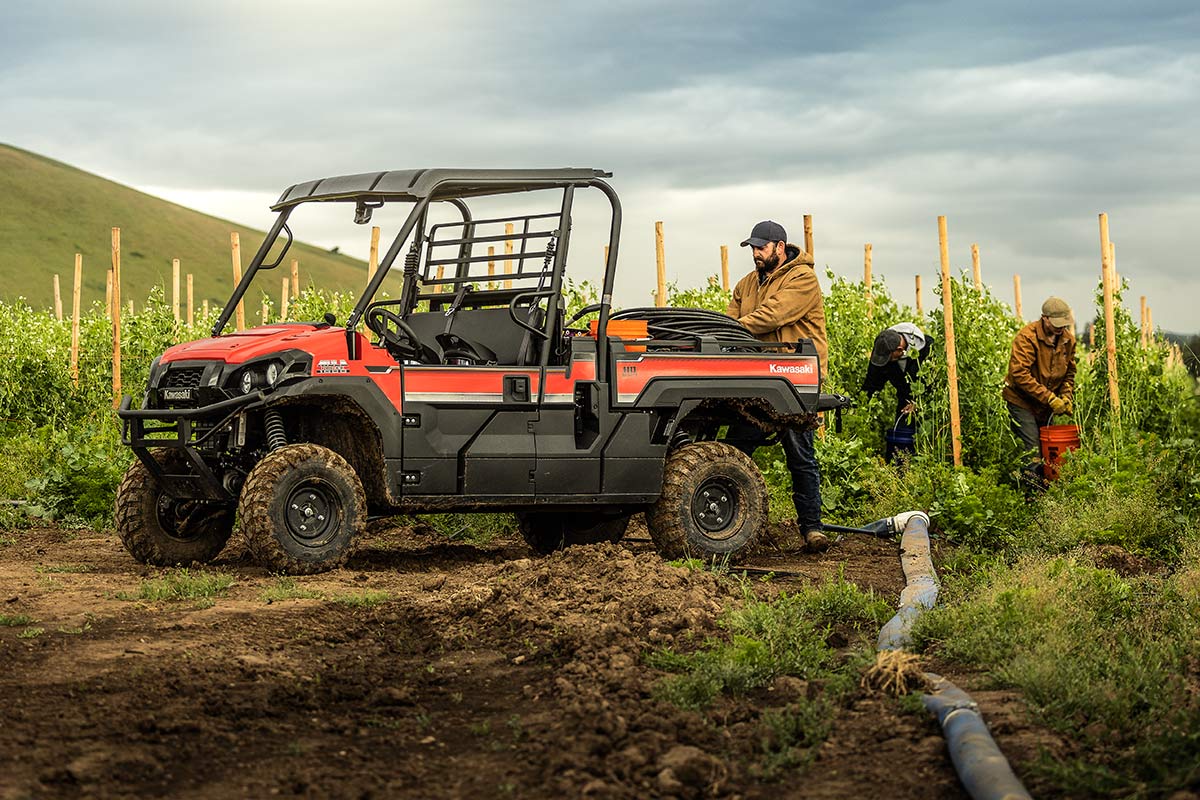

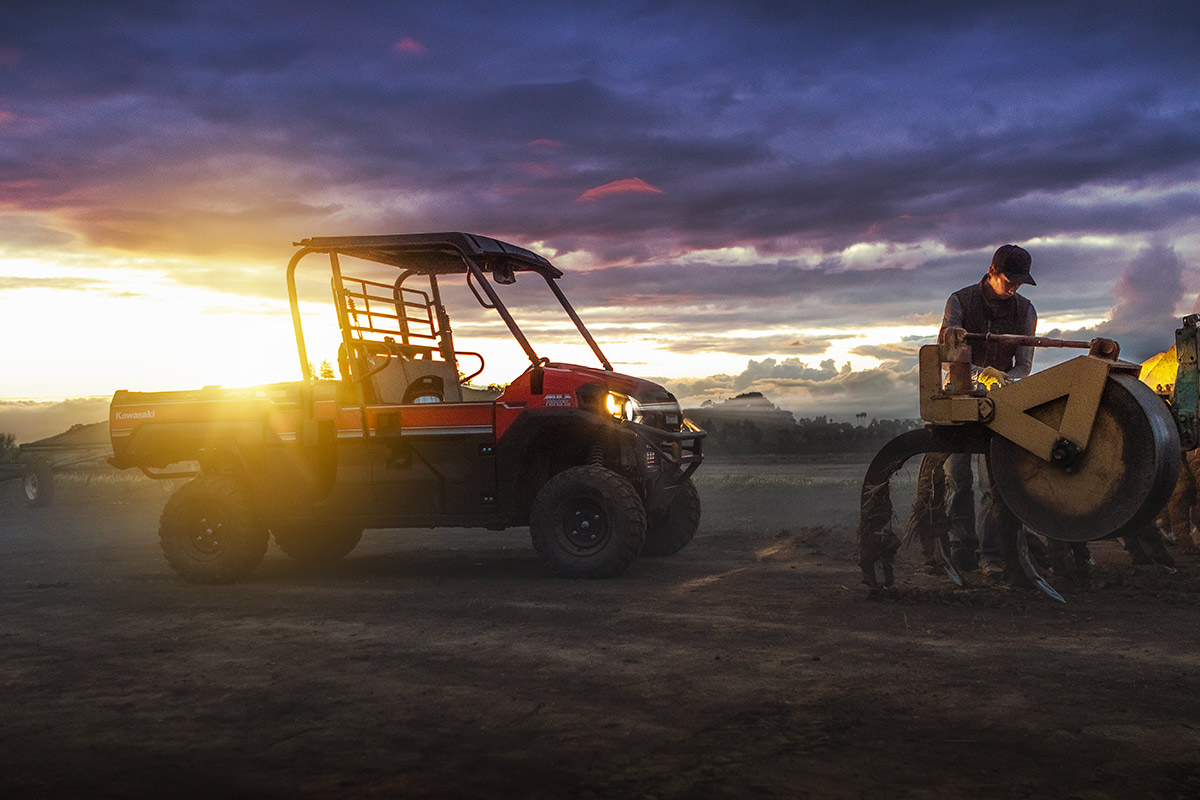

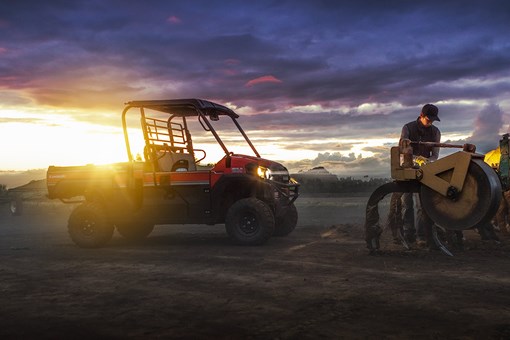

MULE PRO-FX 1000 HD EDITION

DEPENDABLE 3-PASSENGER UTILITY SIDE BY SIDE

  • MSRP
    $21,699

Destination Charge $1,395

Dealer sets the actual destination charge, your price may vary.

Specifications and pricing are subject to change.

Good Times Financing Options
Enjoy low finance rates and flexible payment terms on your new Kawasaki!
START SAVING TODAY

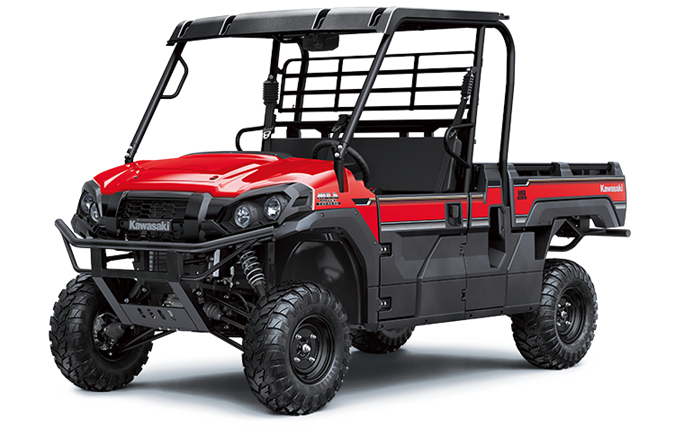

Firecracker Red

Firecracker Red

Kawasaki-Built, Liquid-Cooled
999cc Parallel-Twin

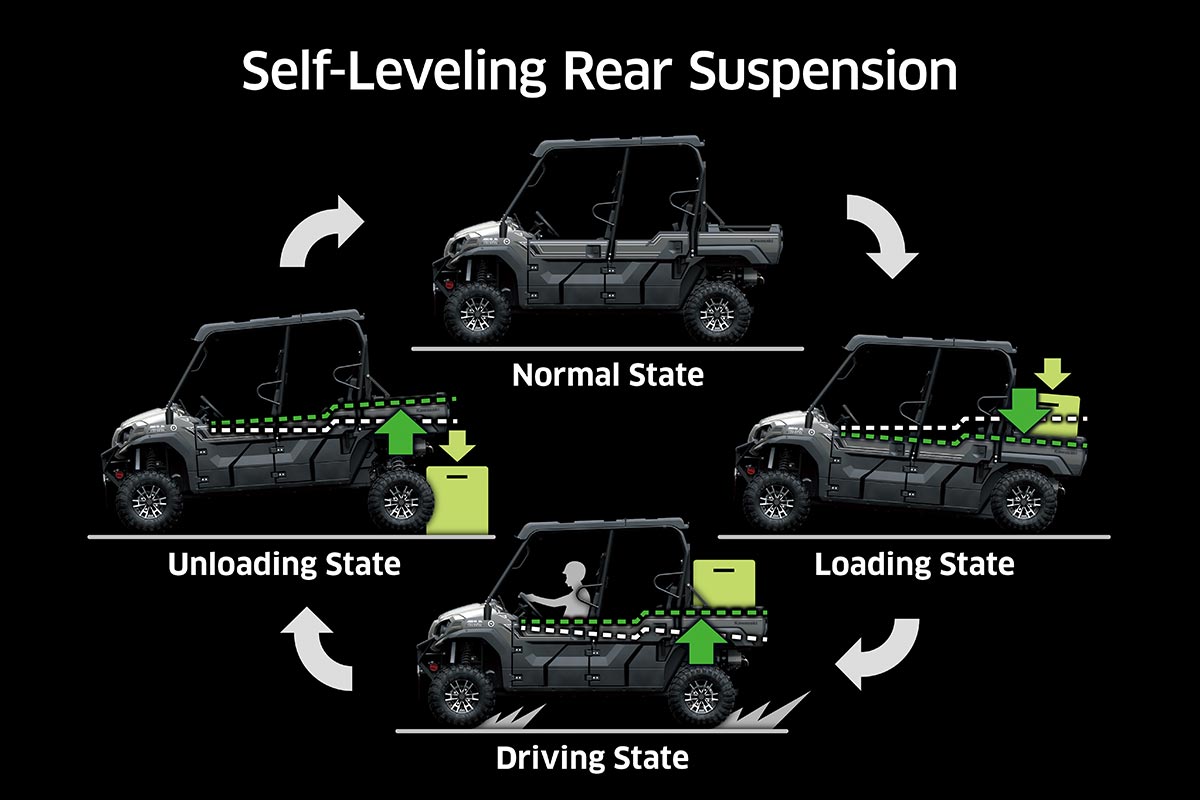

Self-levelling
Rear suspension

Click on a technology to learn more.

Engine Management Technology
Chassis Management Technology

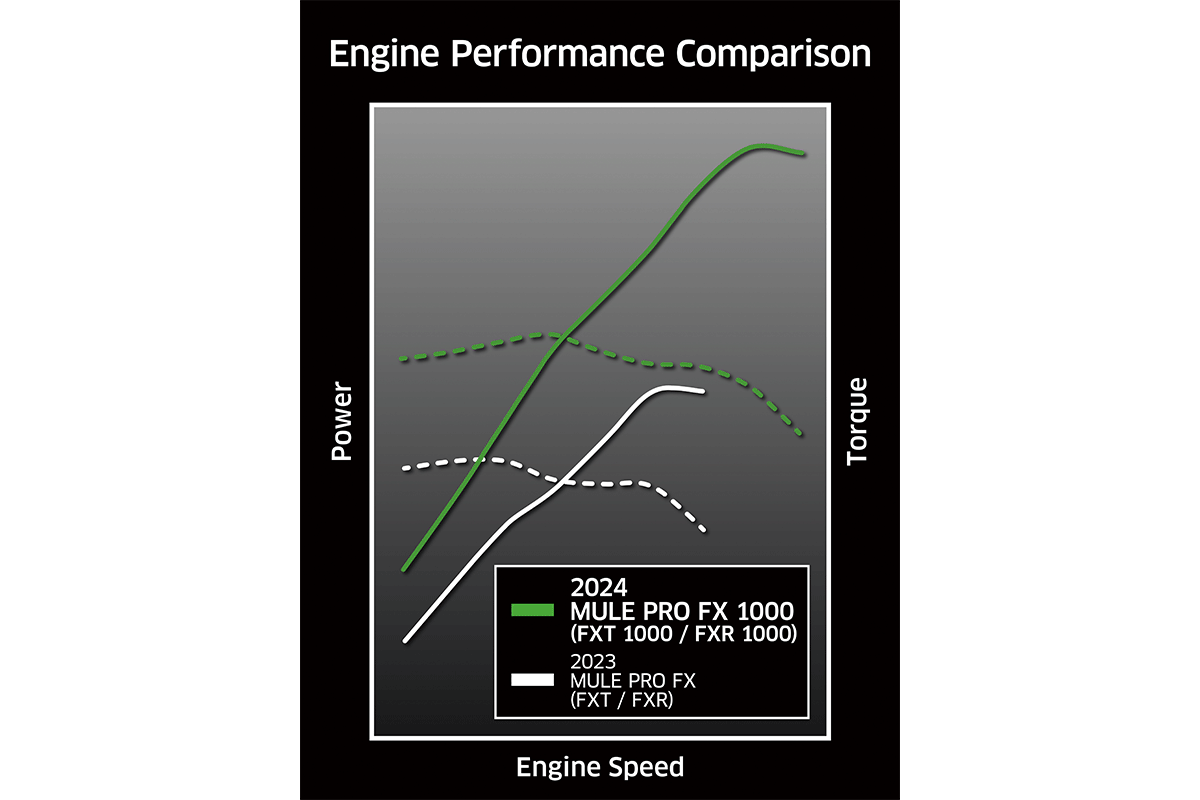

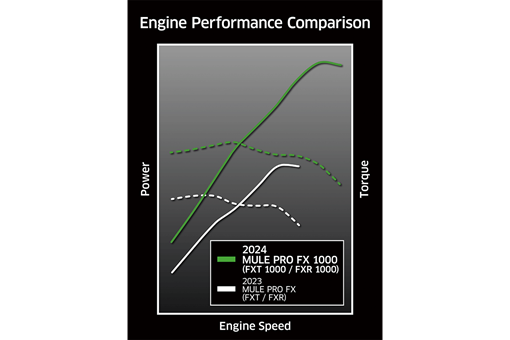

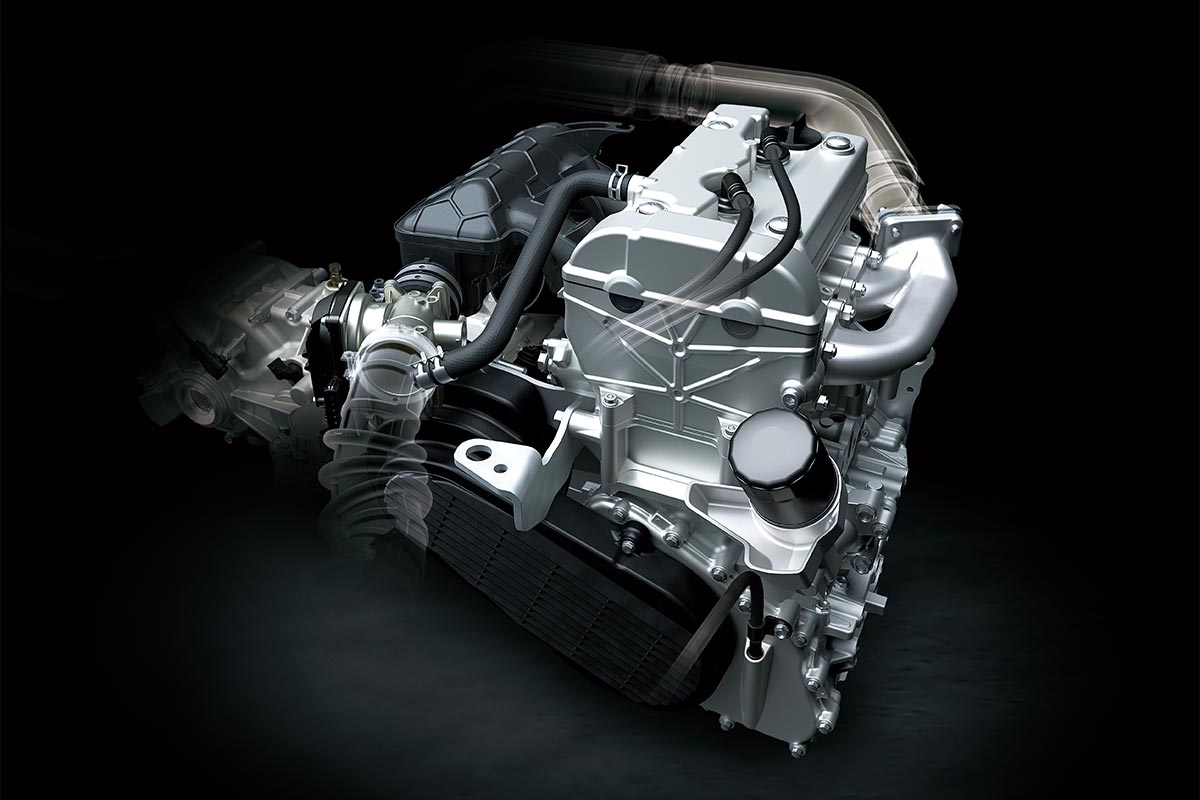

Engine 999cc, liquid-cooled, 4-stroke, DOHC 4-valve-per-cylinder parallel twin
Bore x Stroke 92.0 x 75.1 mm
Compression Ratio 10.1:1

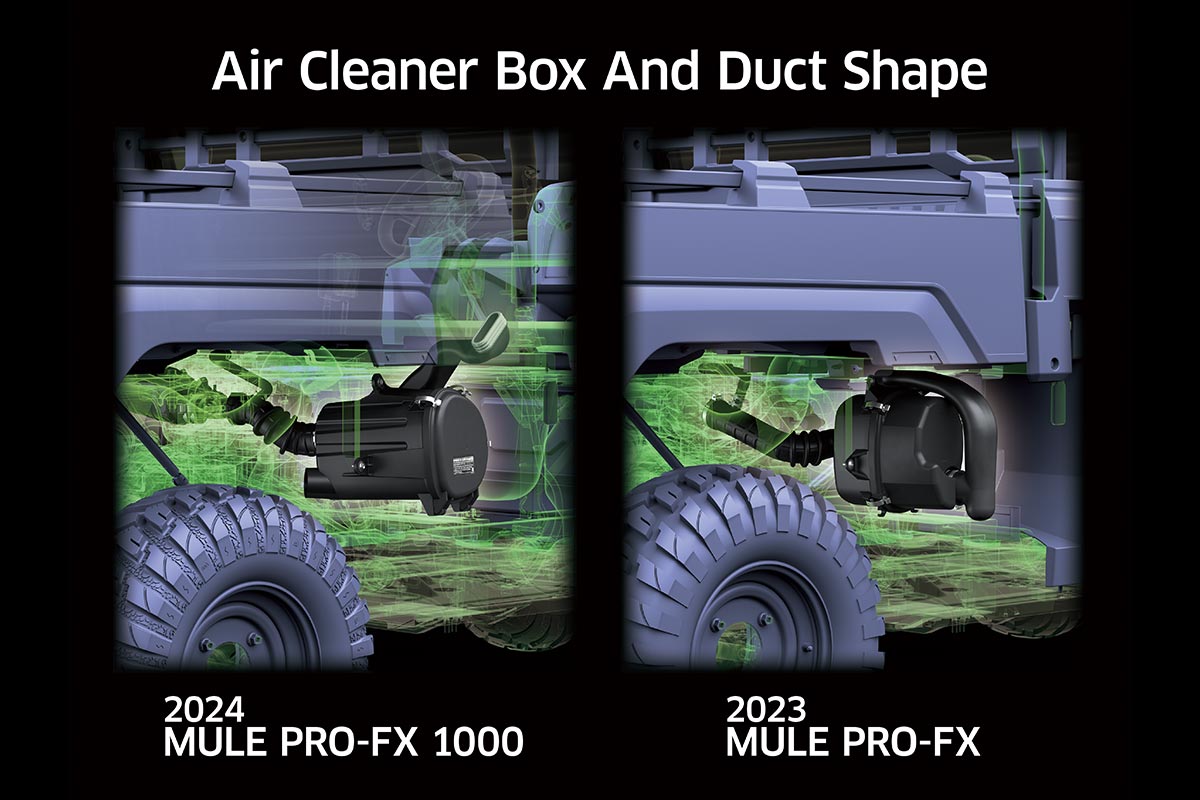

Fuel System Fuel injection: ø38 mm x 1
Ignition Digital
Starting Electric

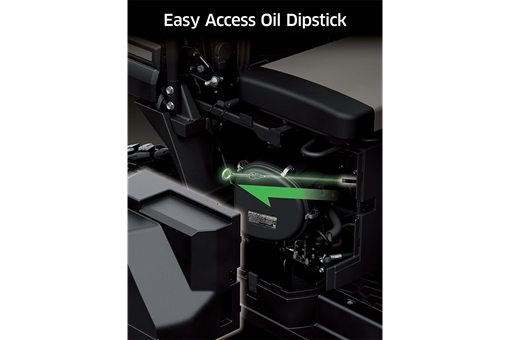

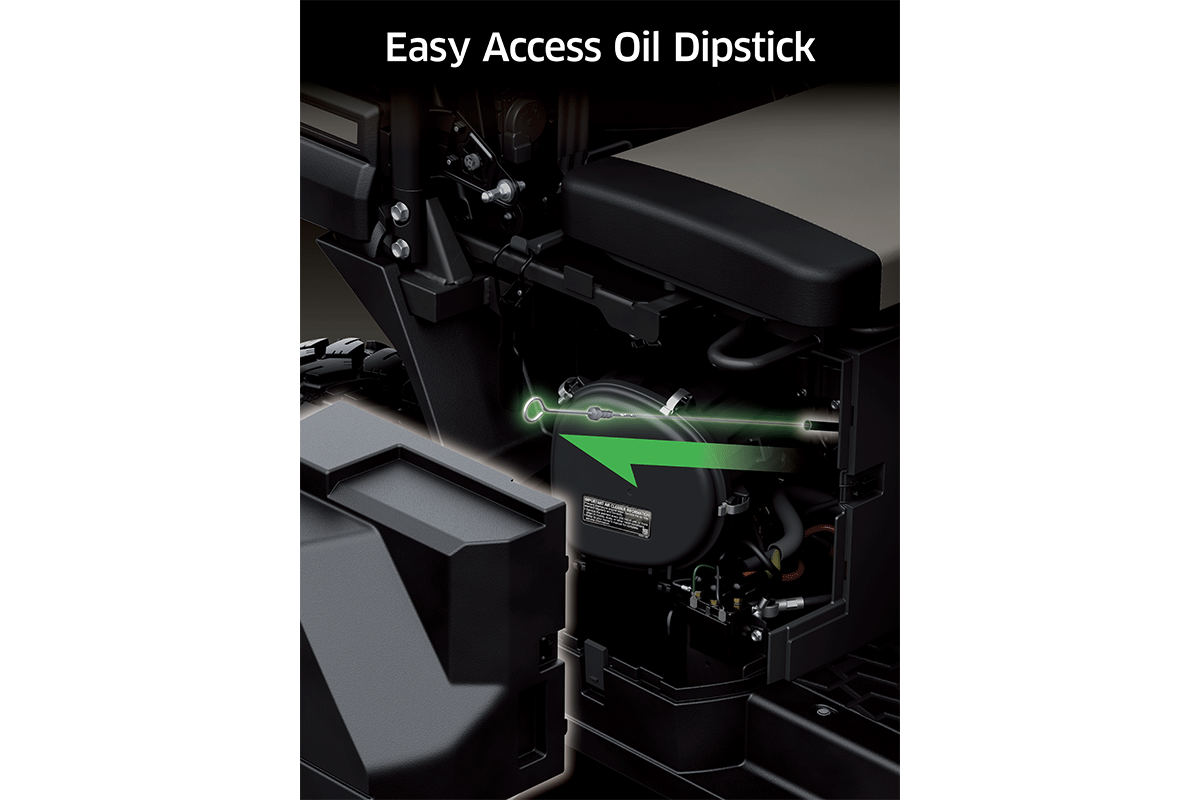

Lubrication Forced lubrication, wet sump
Transmission Dual-range (high/low) CVT with reverse
Final Drive 2WD/4WD, shaft, dual-mode differential

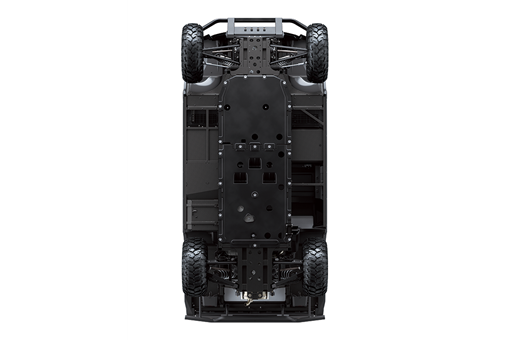

Frame Ladder type, tubular steel

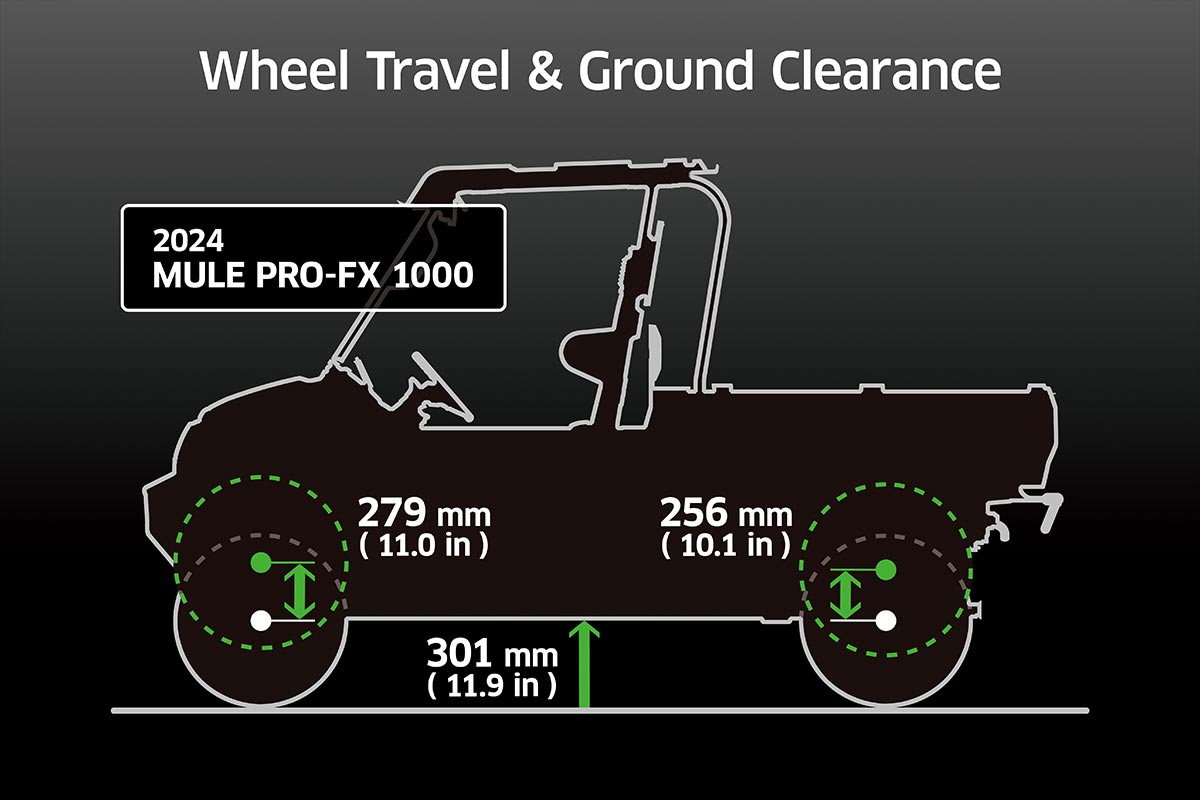

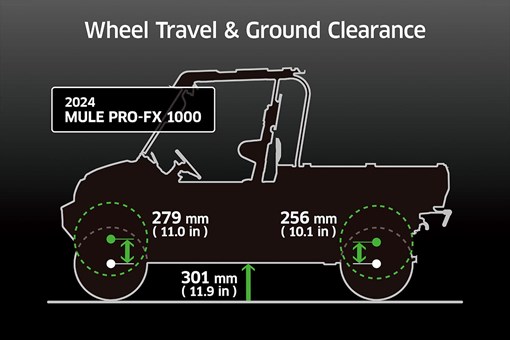

Front Suspension / Wheel Travel Double wishbone / 279 mm (11.0 in)

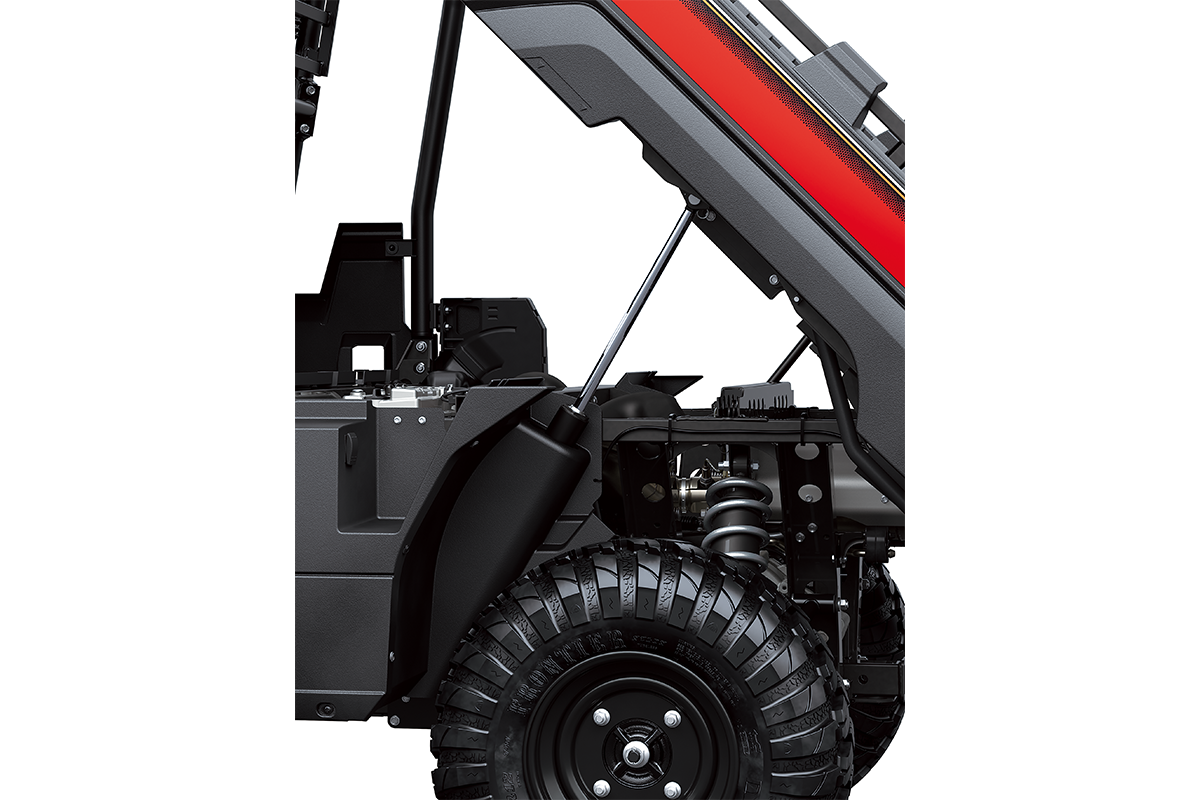

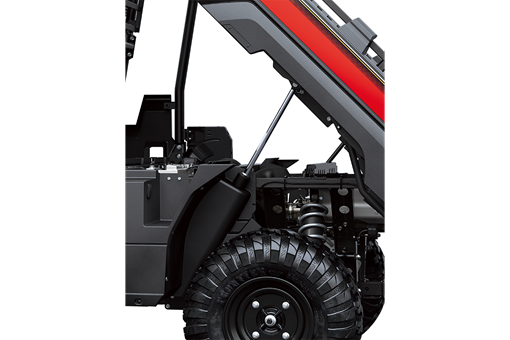

Rear Suspension / Wheel Travel Double wishbone, self-levelling suspension / 256 mm (10.1 in)
Steering Rack and pinion with Electric Power Steering
Rake / Trail 3.7° / 20 mm
Steering Angle (L/R) 40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT)
Front Tires 26 x 9.00R12 4PR
Rear Tires 26 x 11.00R12 4PR
Front Brakes Dual ø212 mm discs with two-piston calipers
Rear Brakes Dual ø212 mm discs with single-piston calipers
Parking Brake Dual discs (mechanical)
Dimensions (LxWxH) 3,450 x 1,625 x 2,060 mm (135.8 x 64.0 x 81.1 in)
Wheelbase 2,345 mm (92.3 in)
Road Clearance 300/301 mm (standard/max preload) (11.8/11.9 in (standard/max preload))
Seat Height 920 mm (36.2 in)
Curb Mass** 858 kg (1,892 lb)
Estimated Dry Weight 824 kg (1,817 lb)
Fuel Capacity 30 litres
Tread (F/R) 1,373 mm (54.1 in) / 1,307 mm (51.5 in)
Turning Radius 4.8 m (15.7 ft)

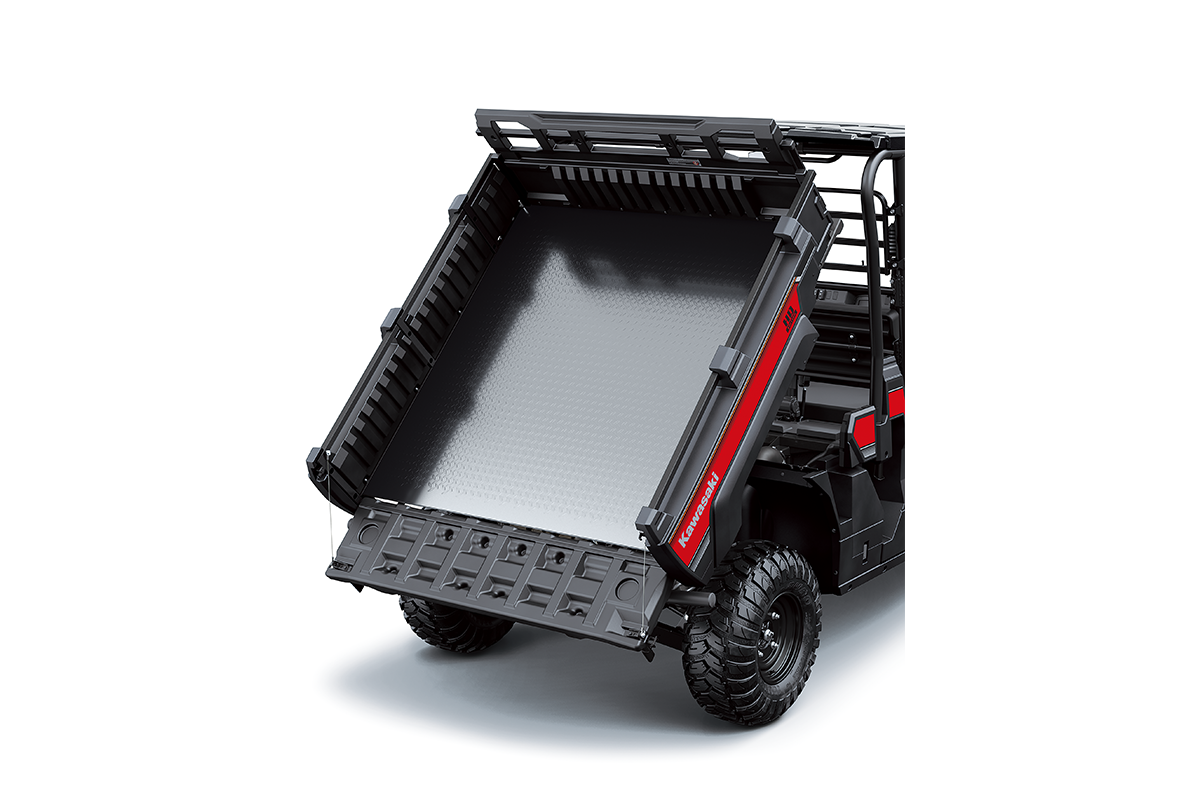

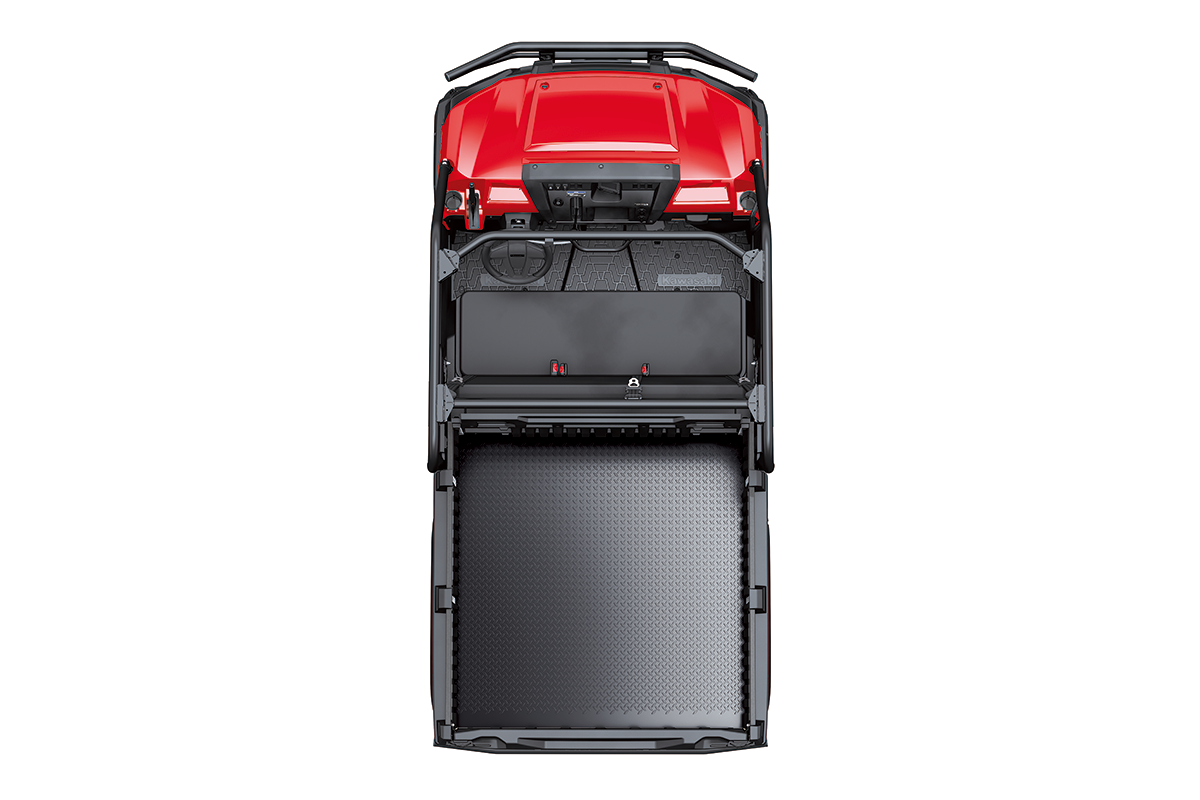

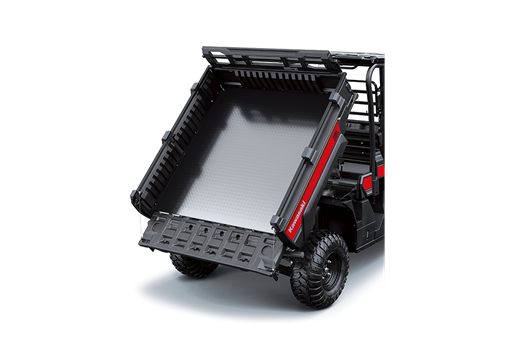

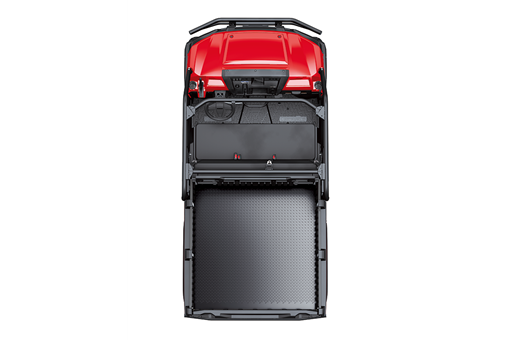

Cargo Bed Dimensions (LxWxH) 1,375 x 1,355 x 280 mm (54.1 x 53.3 x 11.0 in)
Cargo Bed Capacity 453 kg (1,000 lb)

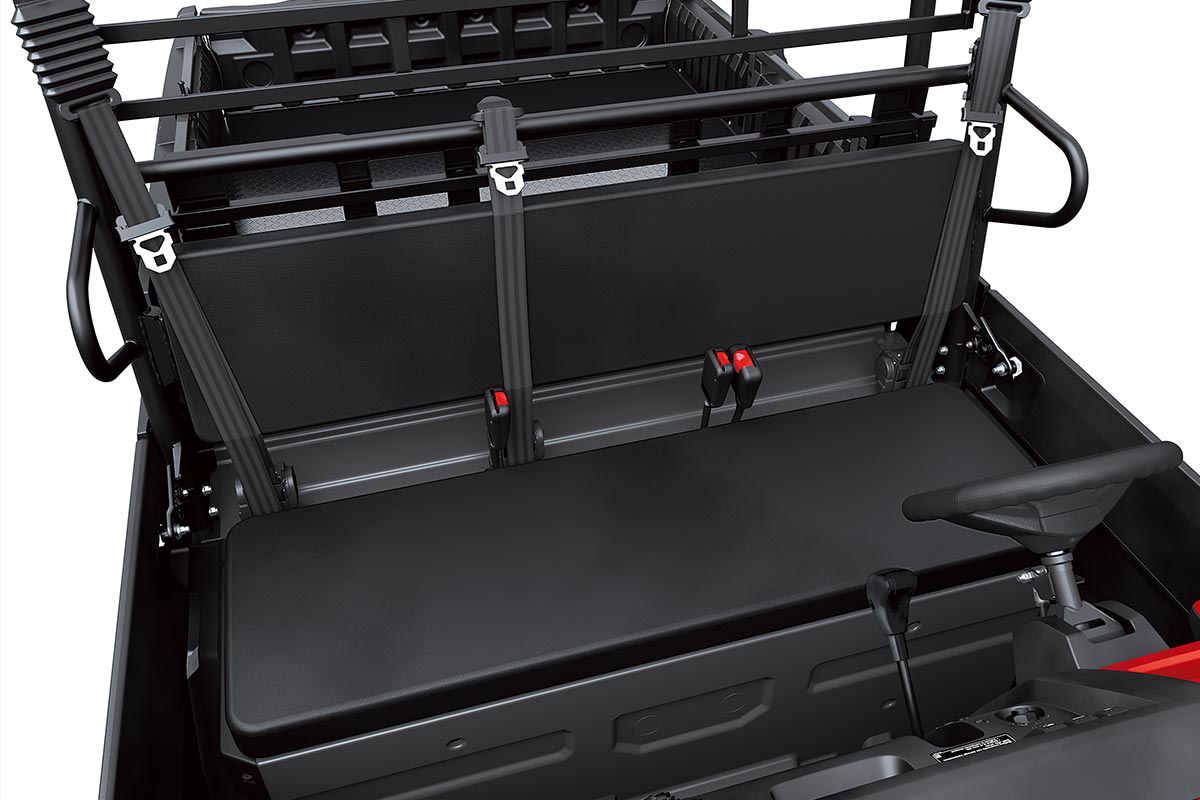

Seating Capacity 3
Vehicle Load Capacity 733 kg (1,616 lb)

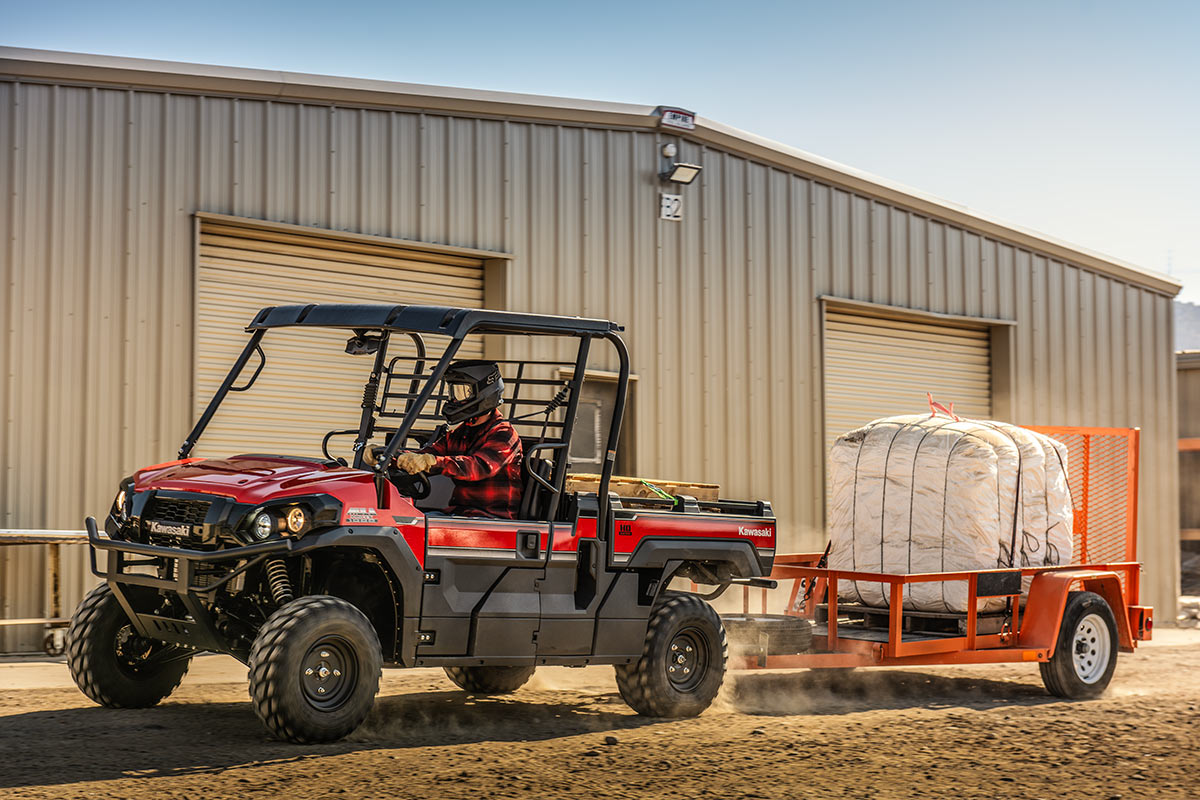

Towing Capacity 907 kg (2,000 lb)

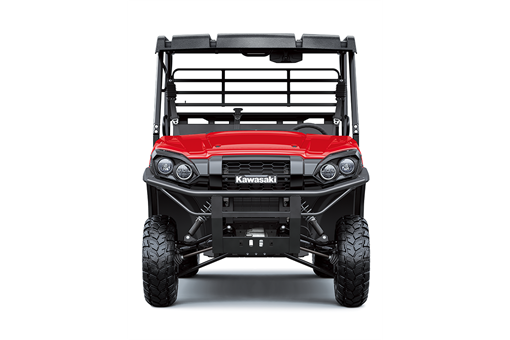

Lighting 2x halogen, 2x LED headlights

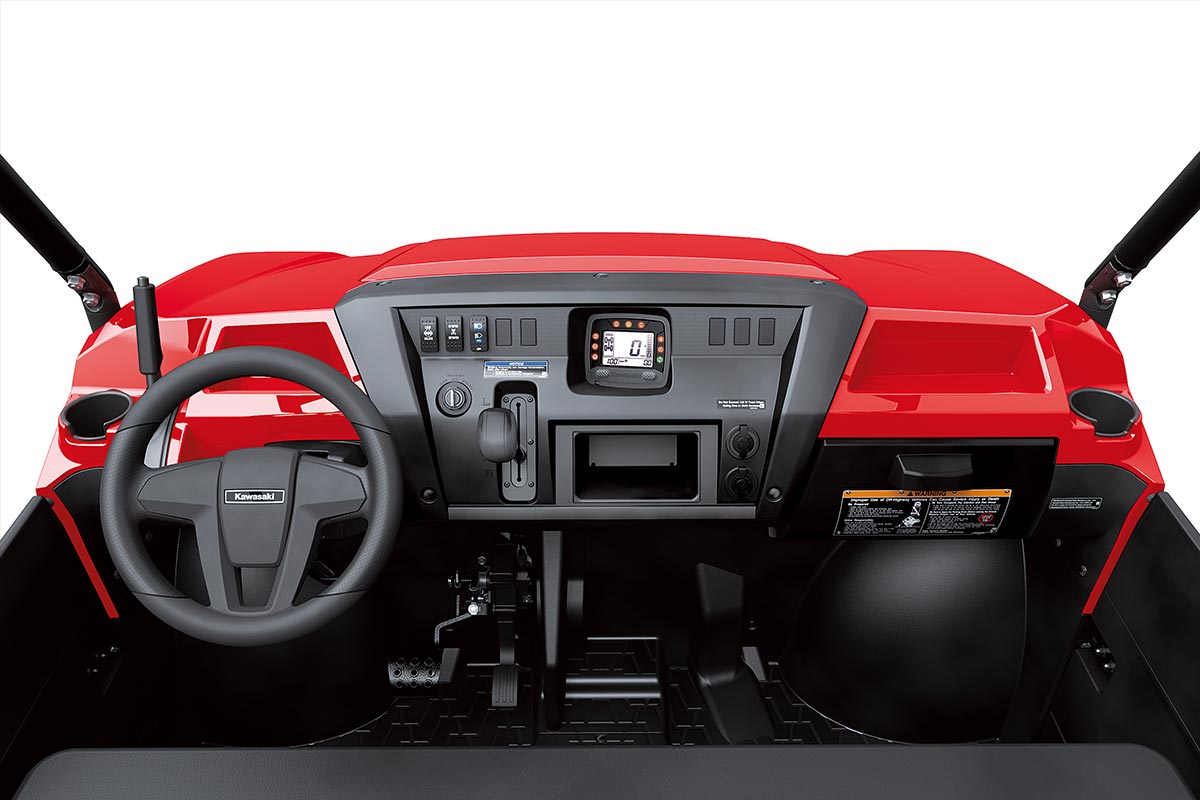

Instrumentation Multi-function display includes driving mode (2WD/4WD) indicator, digital speedometer, digital fuel gauge, clock, odometer, dual trip meters, hour meter, and various warning lamps
Warranty 36 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2020 Canadian Kawasaki Motors, Inc.

Specifications subject to change.
