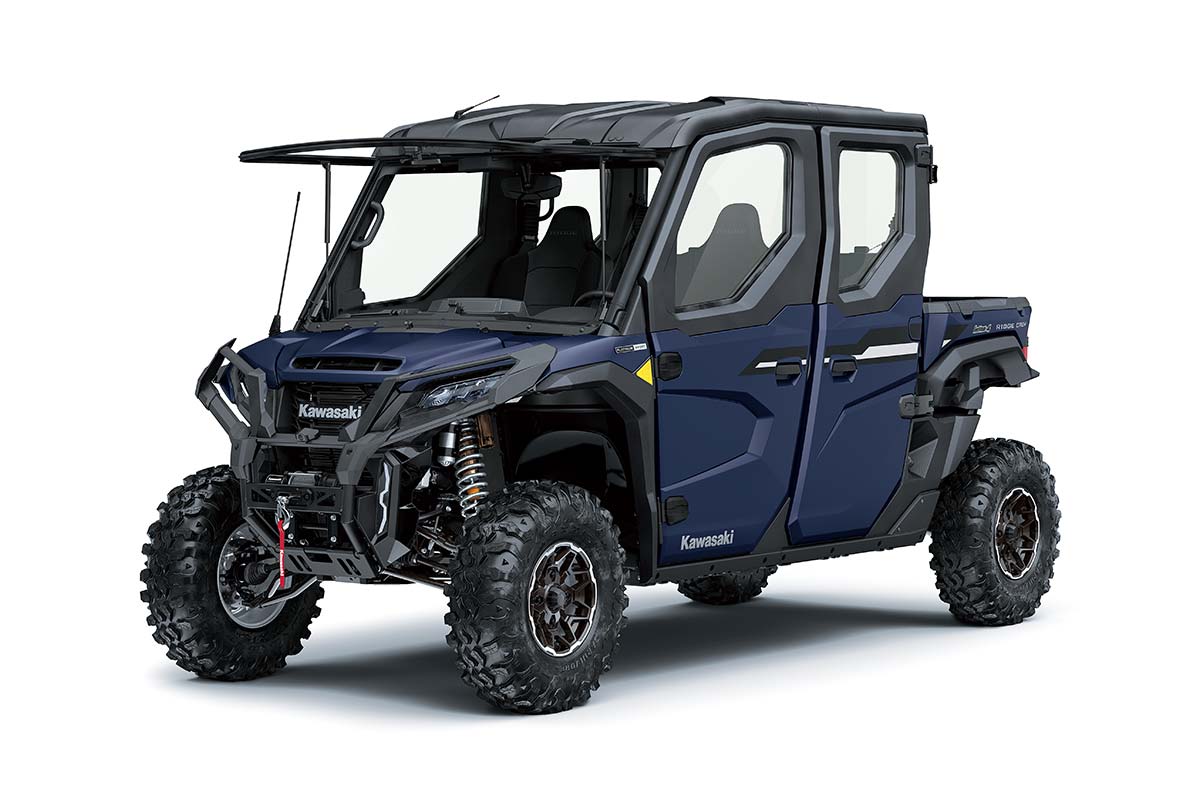

RIDGE CREW PLATINUM SPORT HVAC

PERFORMANCE UTILITY FOR TOUGH JOBS

Select your province for detailed pricing
< Change Province

ABS
Non-ABS


MSRP

Mega Cash Discount

Freight

Assembly & PDI

Registration/Plate Fees

GST/HST

Specifications and pricing are subject to change.

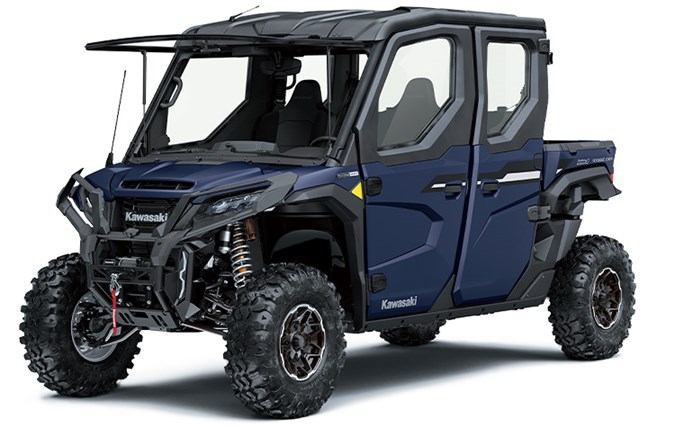

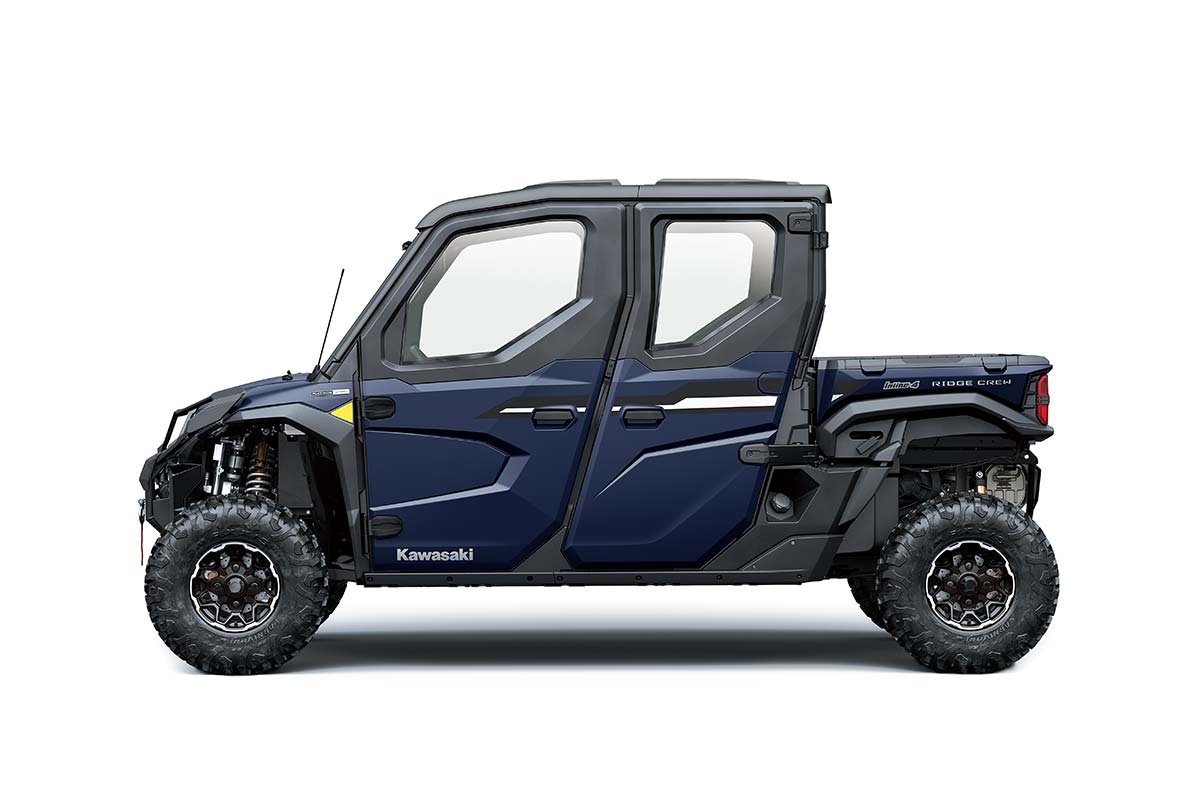

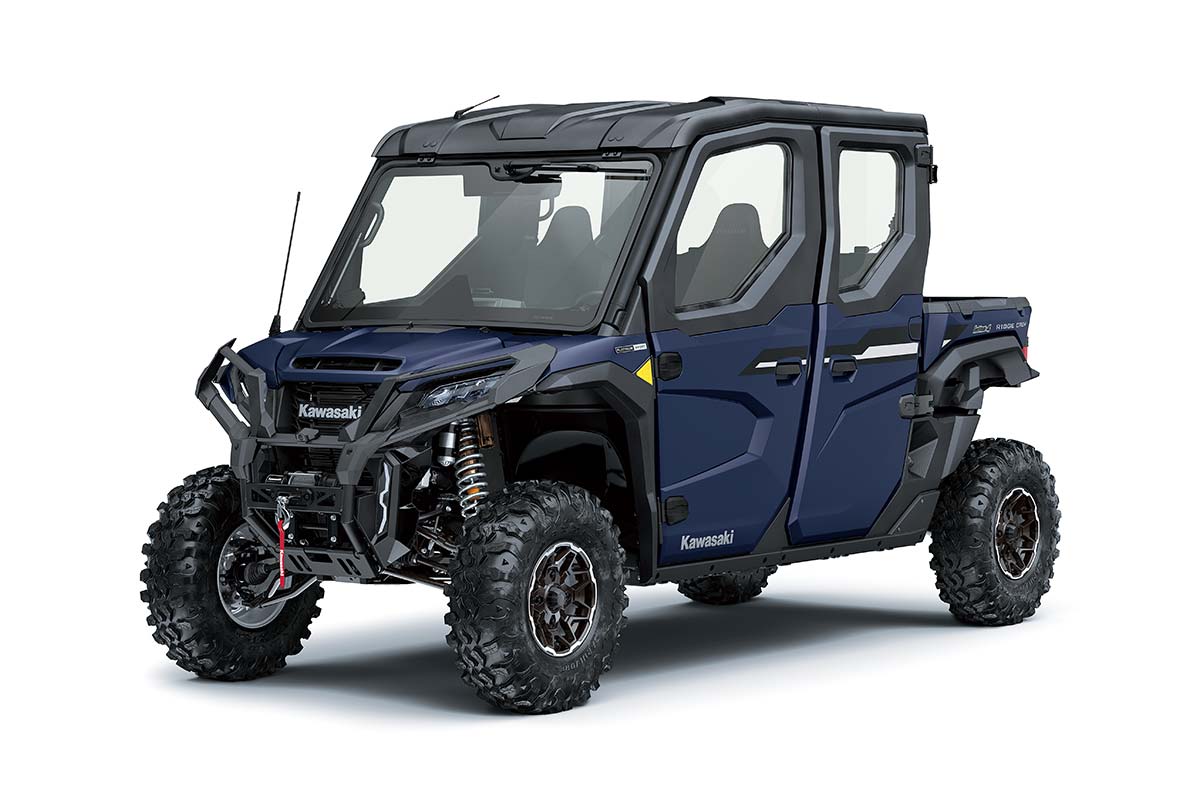

Metallic Matte Twilight Blue

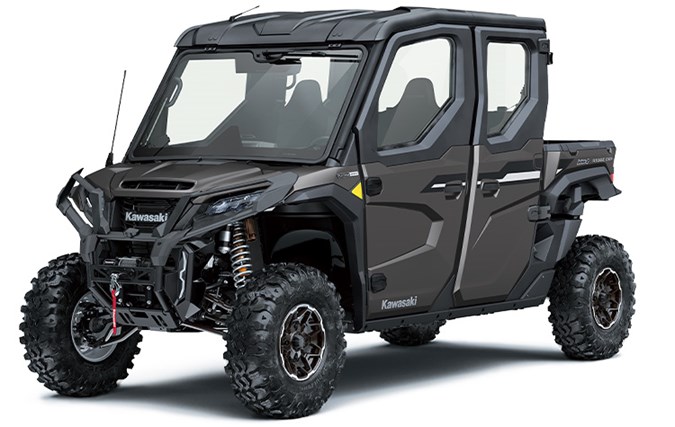

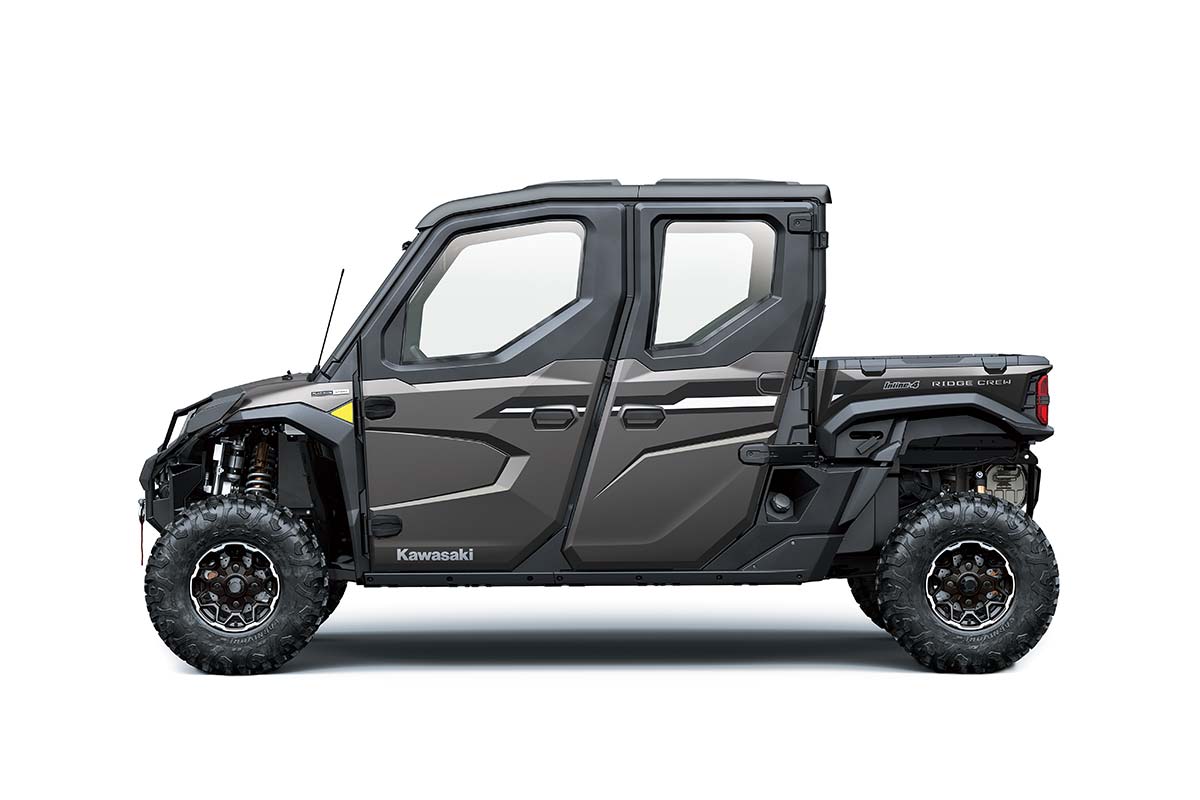

Metallic Flat Raw Graystone

Metallic Matte Twilight Blue

Metallic Flat Raw Graystone

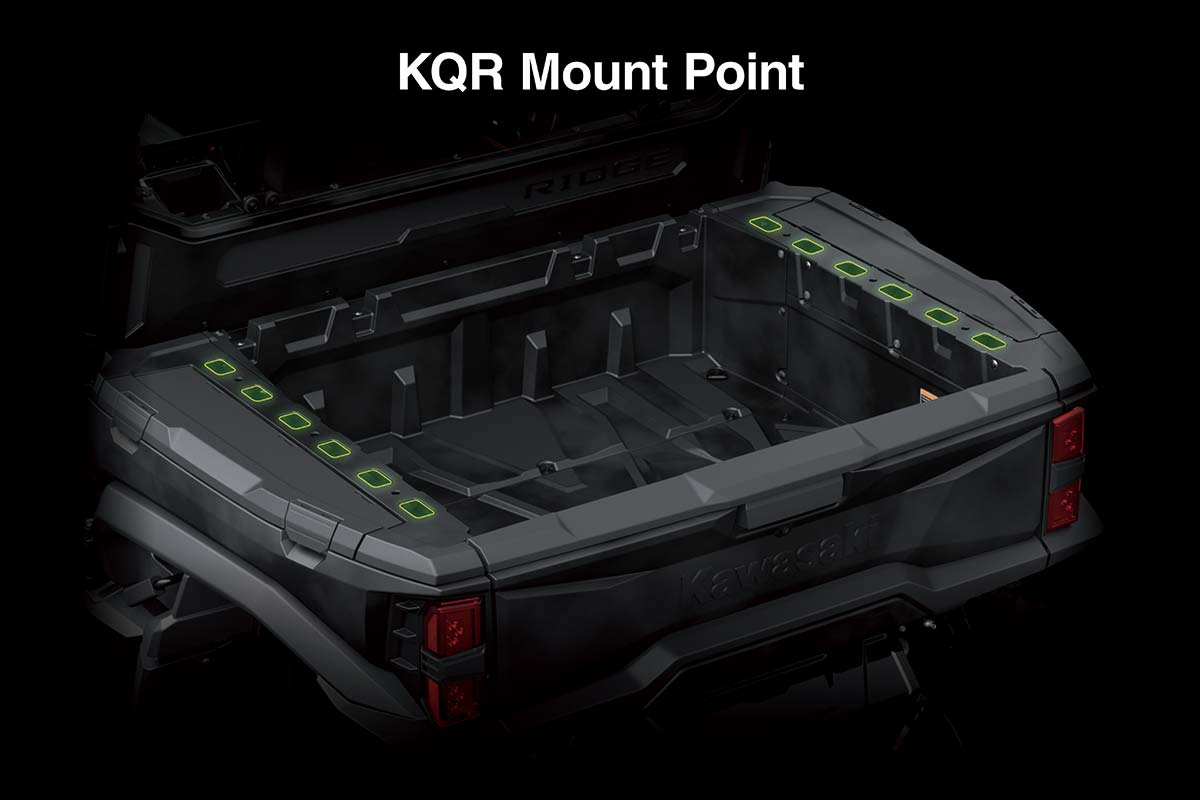

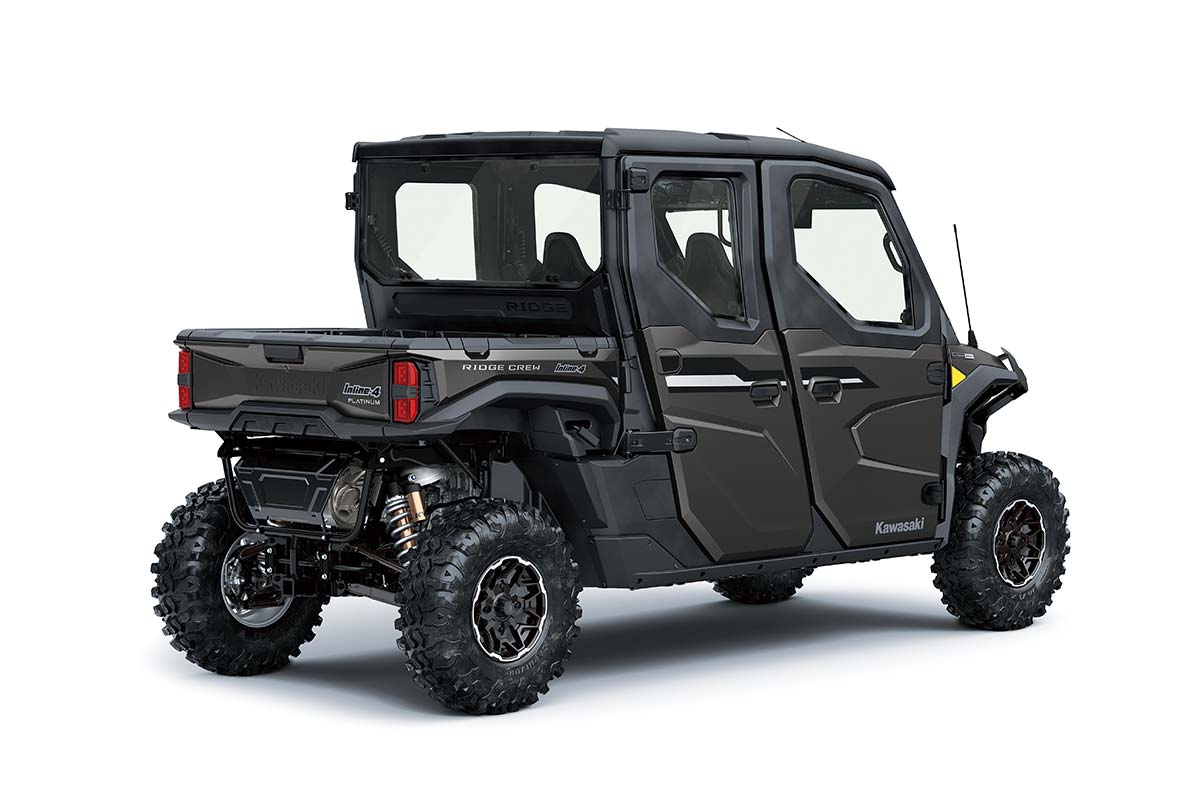

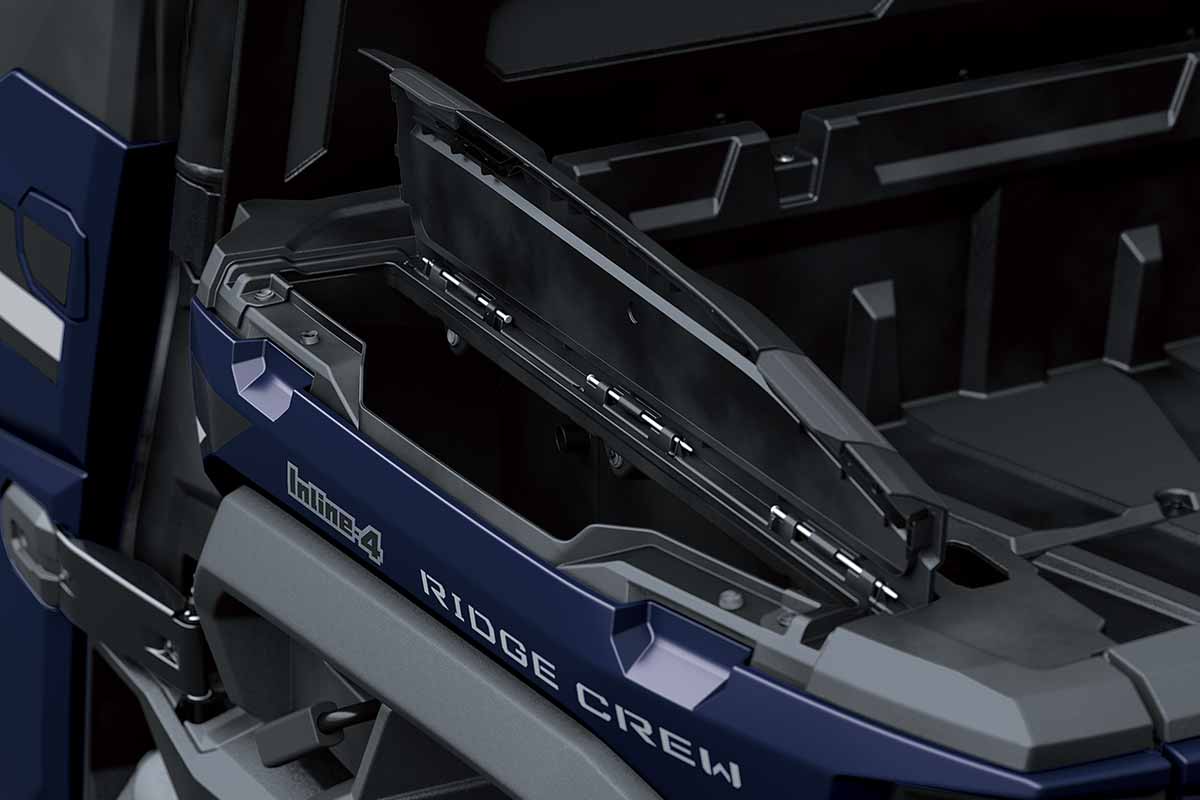

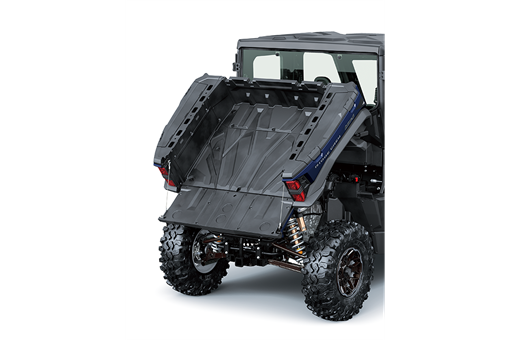

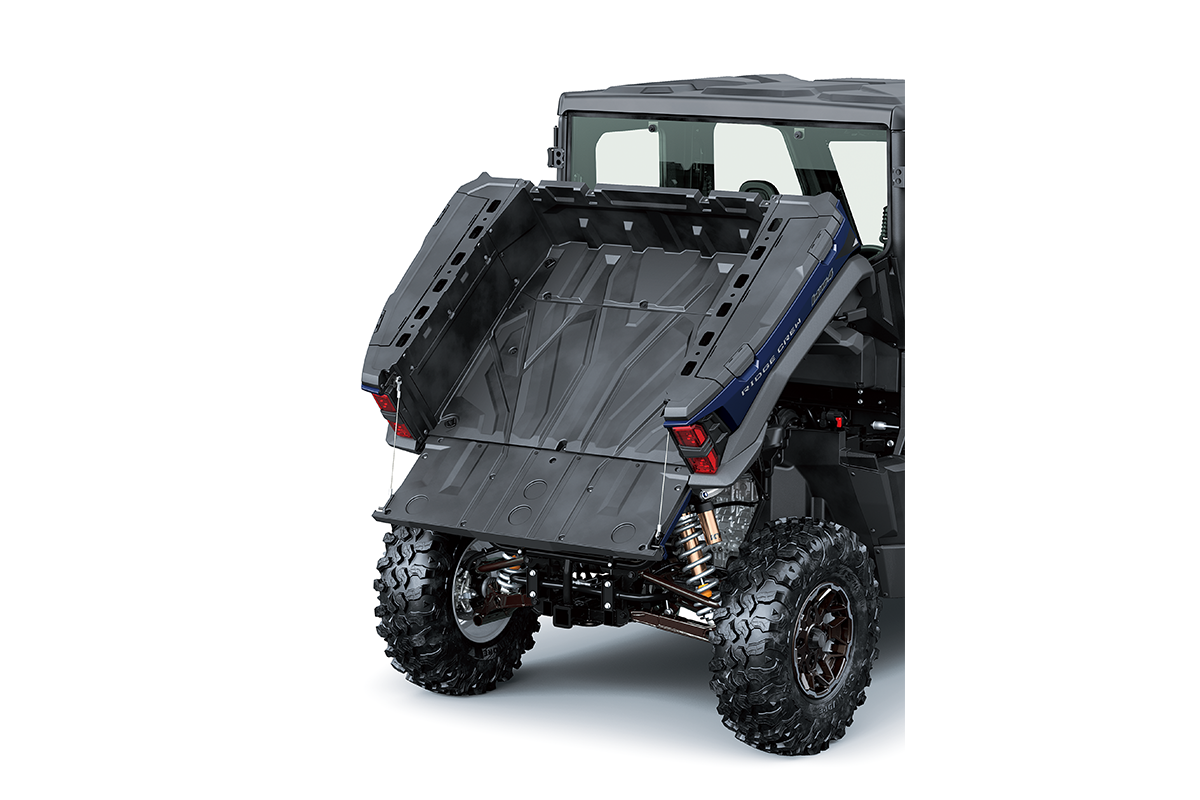

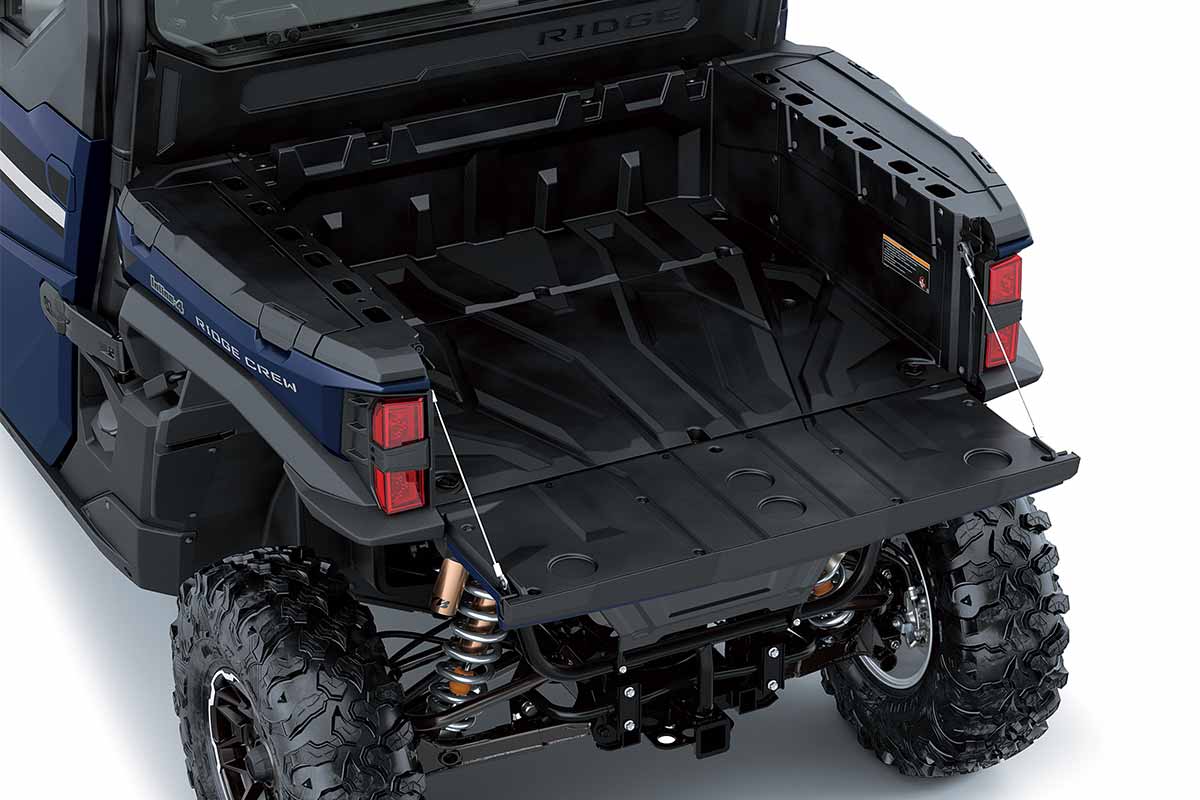

Cargo bed
with covered side storage

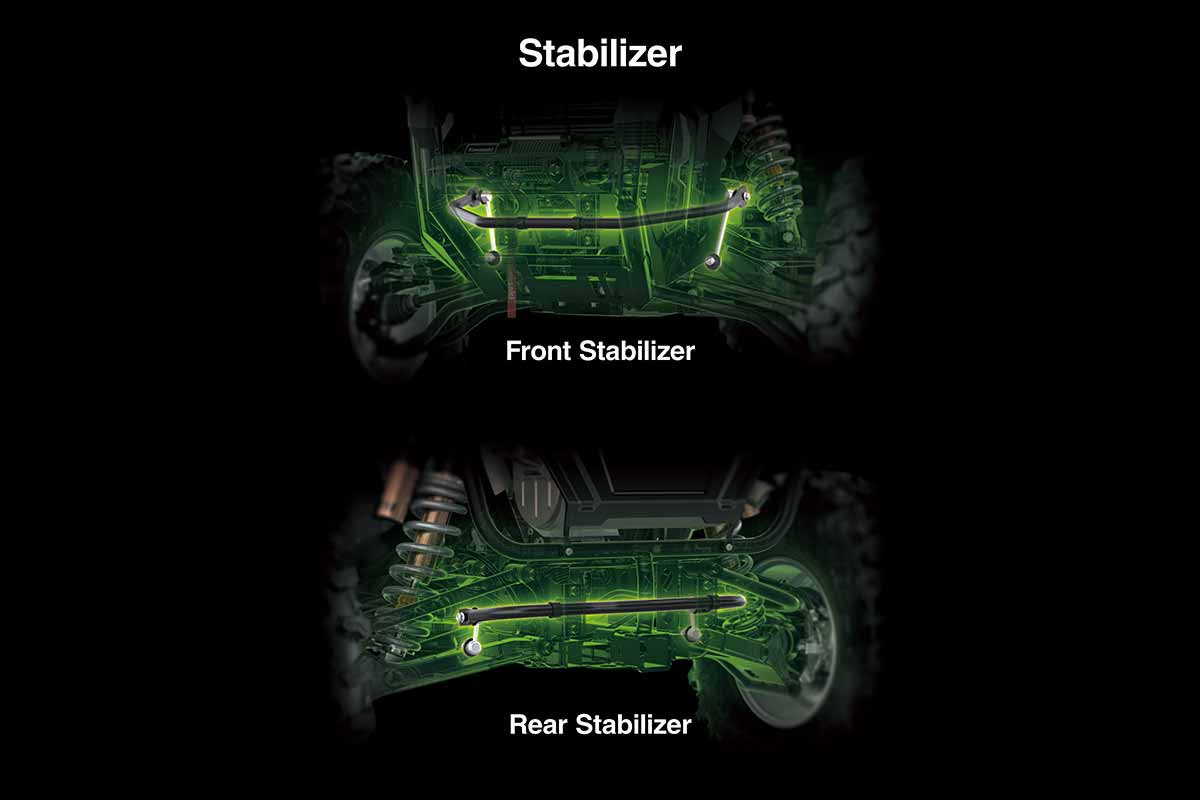

Front and rear
stabiliser (sway) bars

Click on a technology to learn more.

Chassis Management Technology

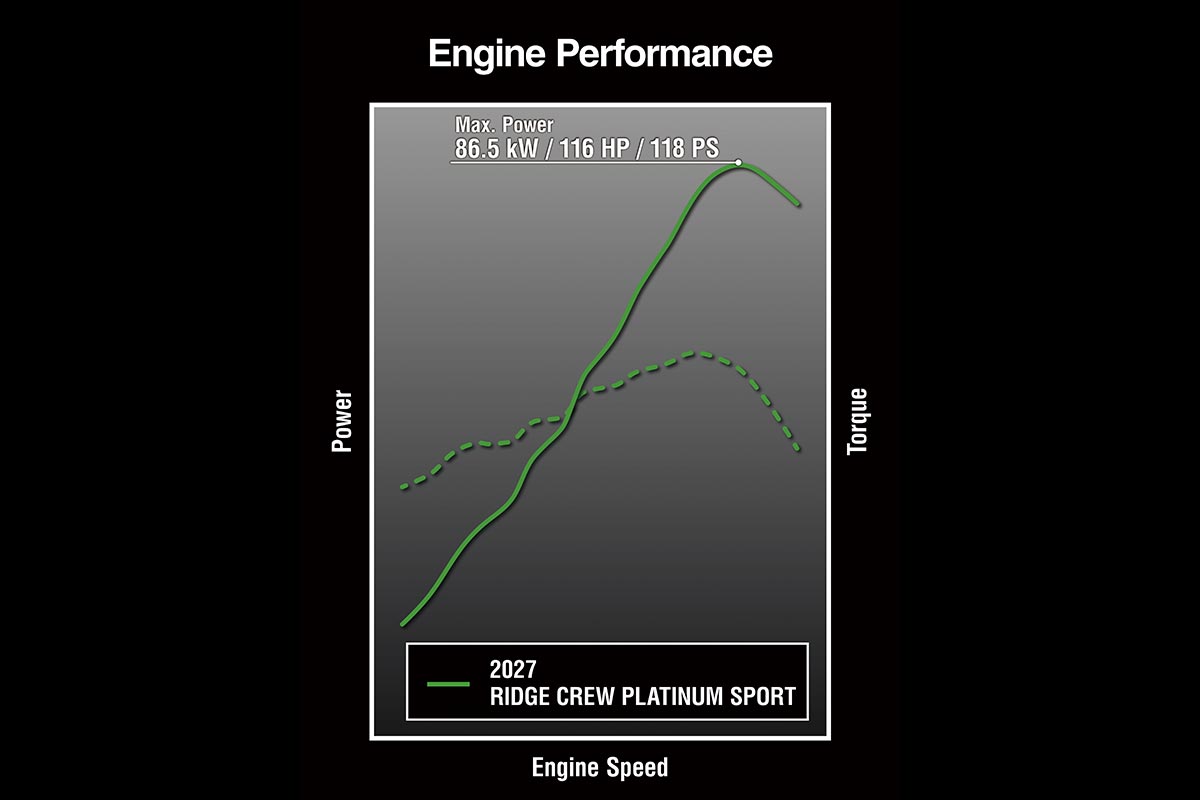

Power 86.5 kW* {118 PS*} / 8,500 rpm (*This vehicle’s engine output was measured according to ISO standard 4106.)
Torque 100 Nm {10.2 kgfm} / 8,000 rpm

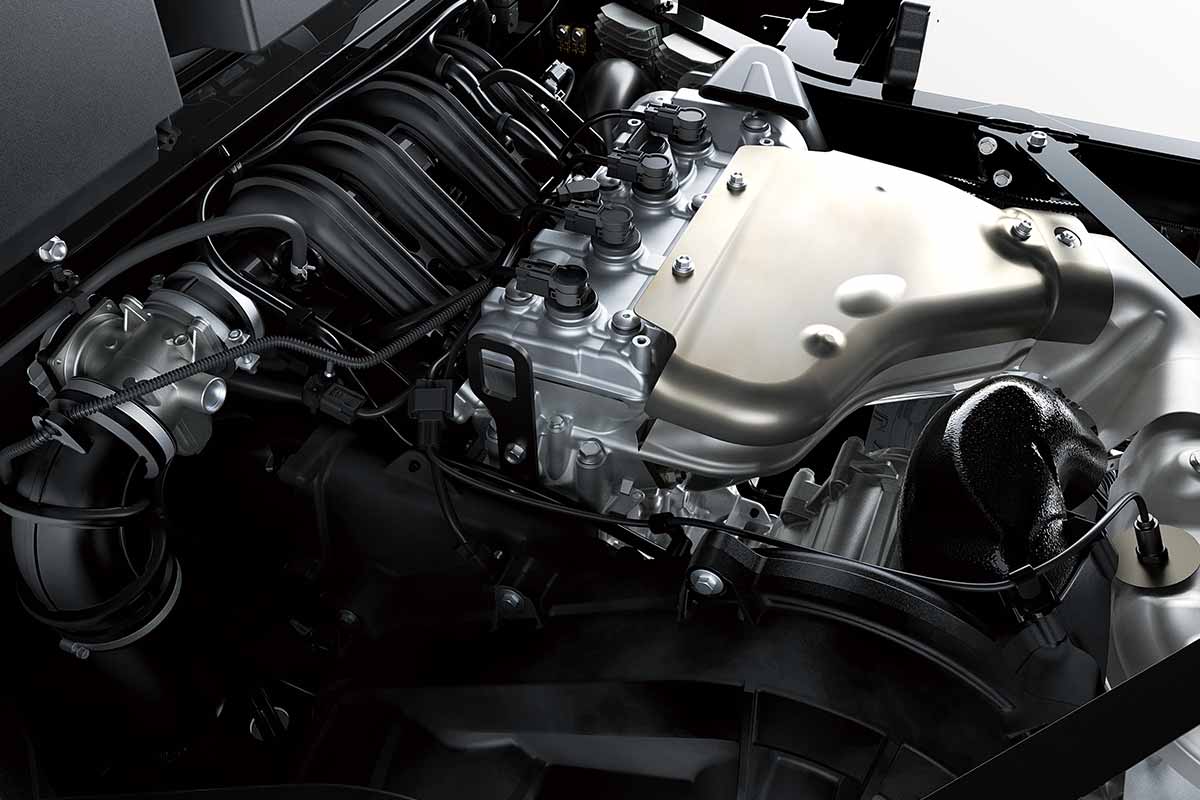

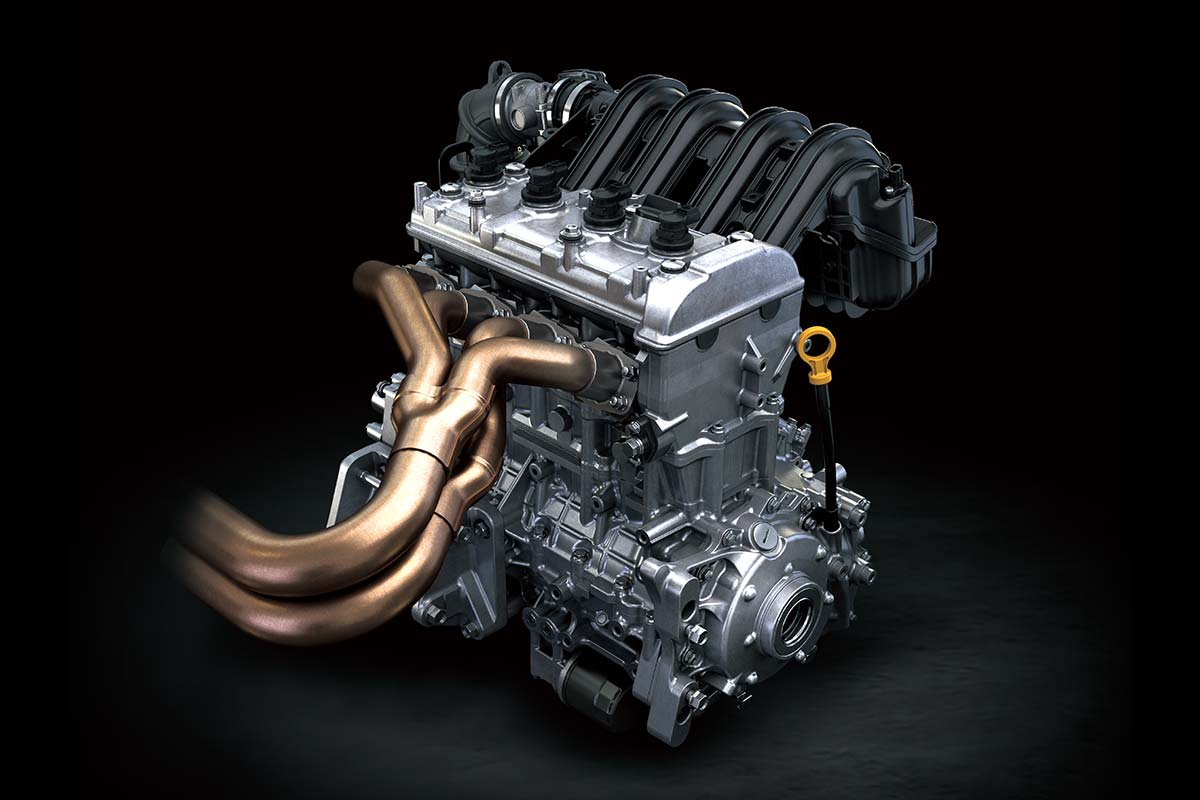

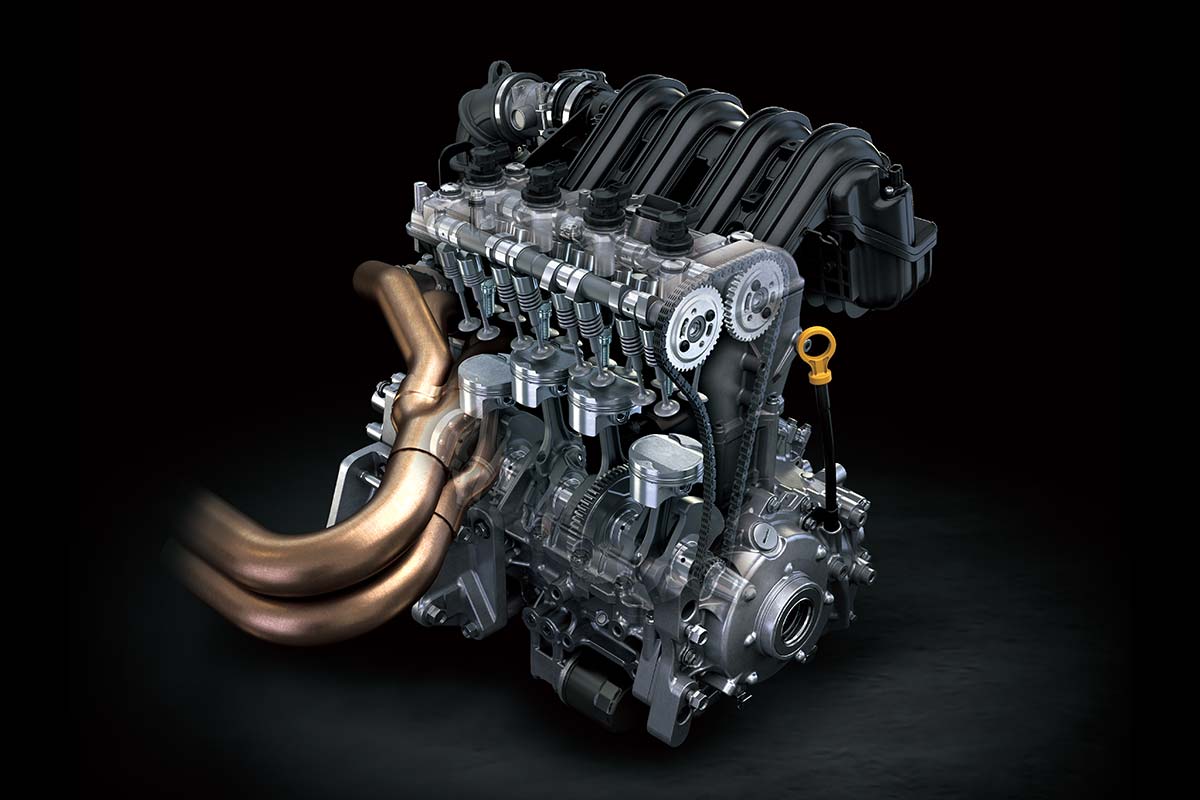

Engine 999cc, liquid-cooled, 4-stroke, DOHC 4-valve-per-cylinder in-line four
Bore x Stroke 73.4 x 59.0 mm
Compression Ratio 10.6:1
Fuel System Fuel injection: ø52 mm x 1
Ignition Digital
Starting Electric
Lubrication Forced lubrication, wet sump

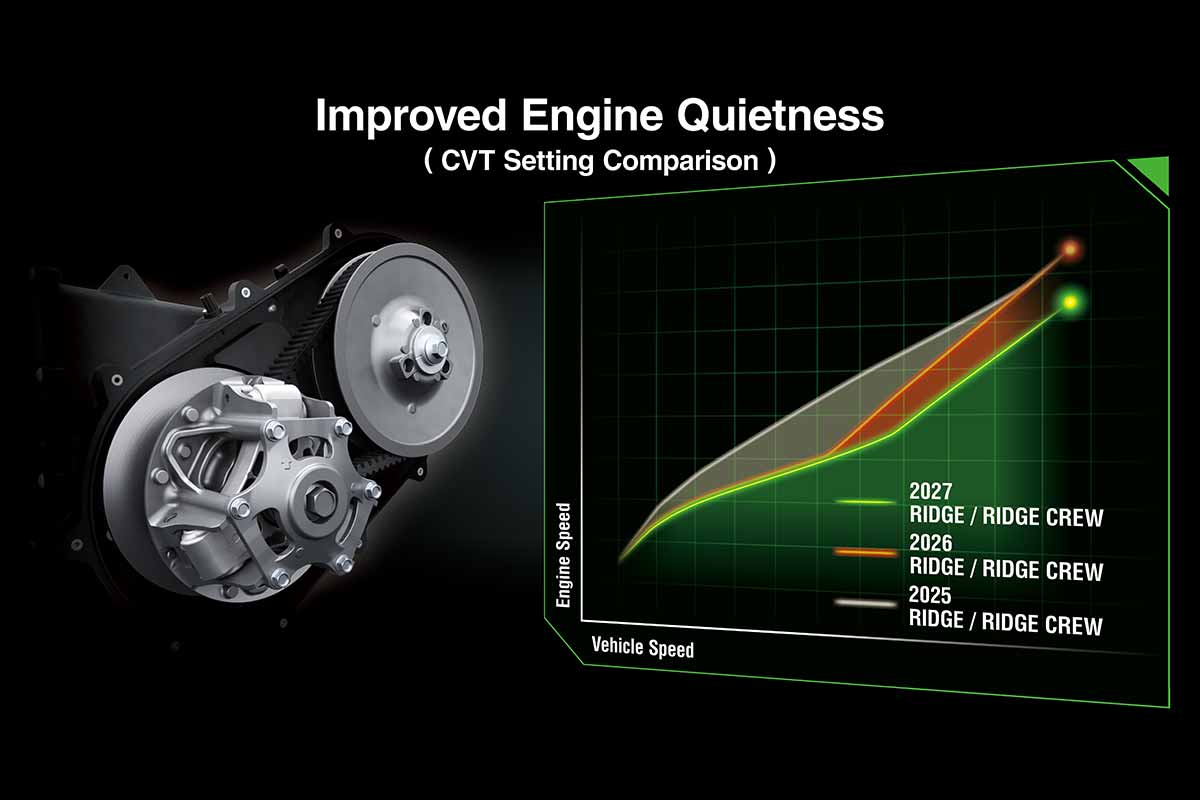

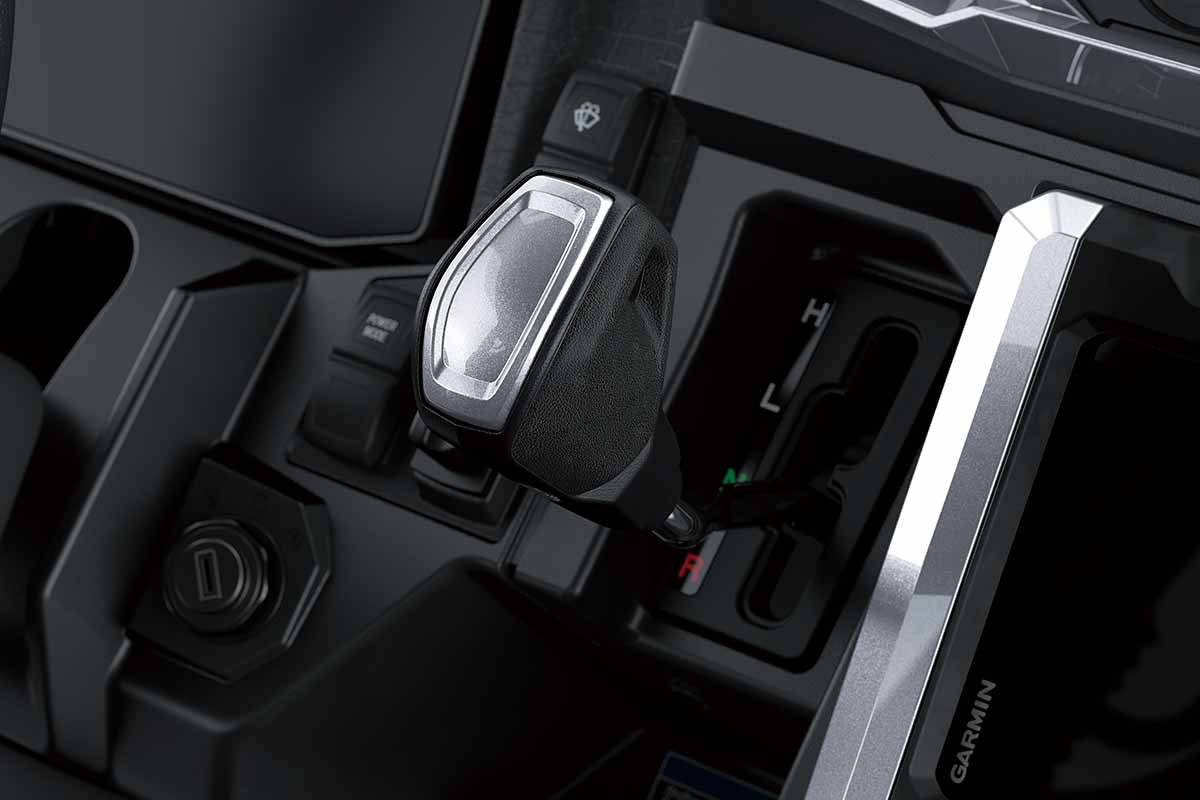

Transmission Dual-range (high/low) CVT with reverse
Final Drive 2WD/4WD, shaft, dual-mode front/rear differential
Frame Ladder type, tubular steel

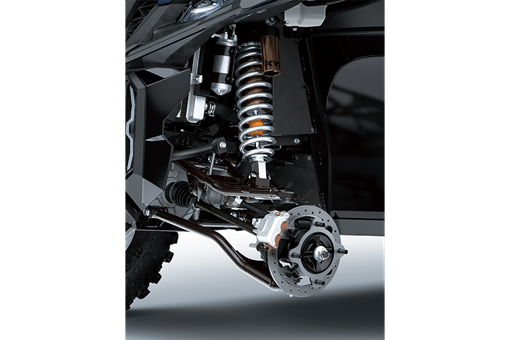

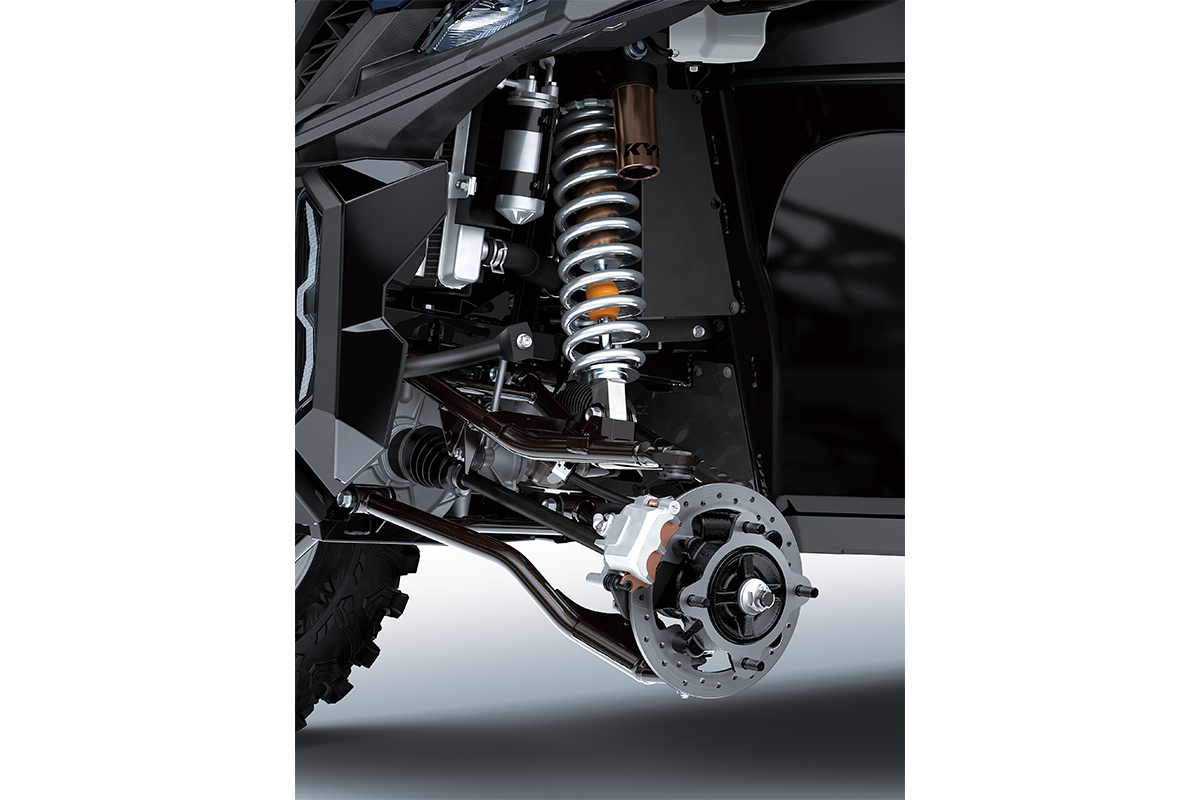

Front Suspension / Wheel Travel Double wishbone, KYB Piggyback Shocks with adjustable preload / 323 mm (12.7 in)

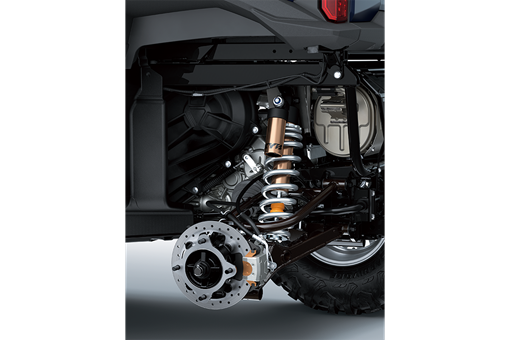

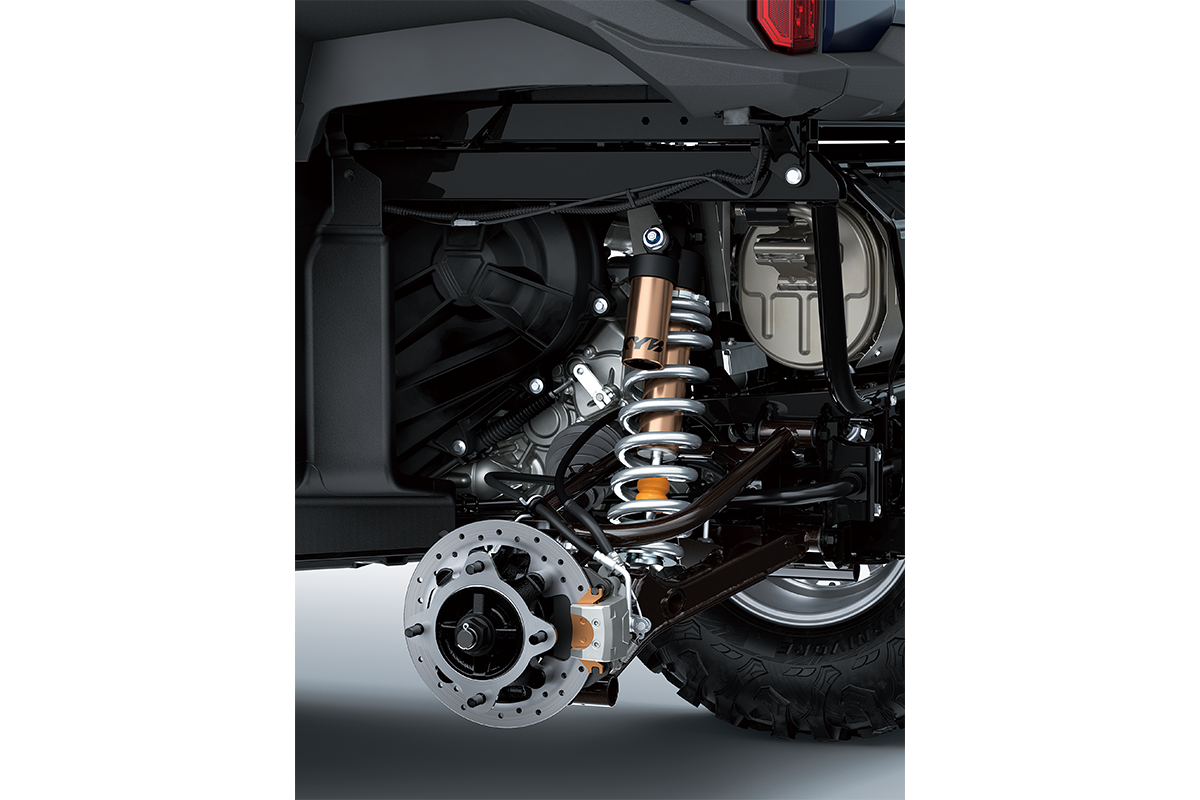

Rear Suspension Double wishbone / 322 mm (12.7 in)

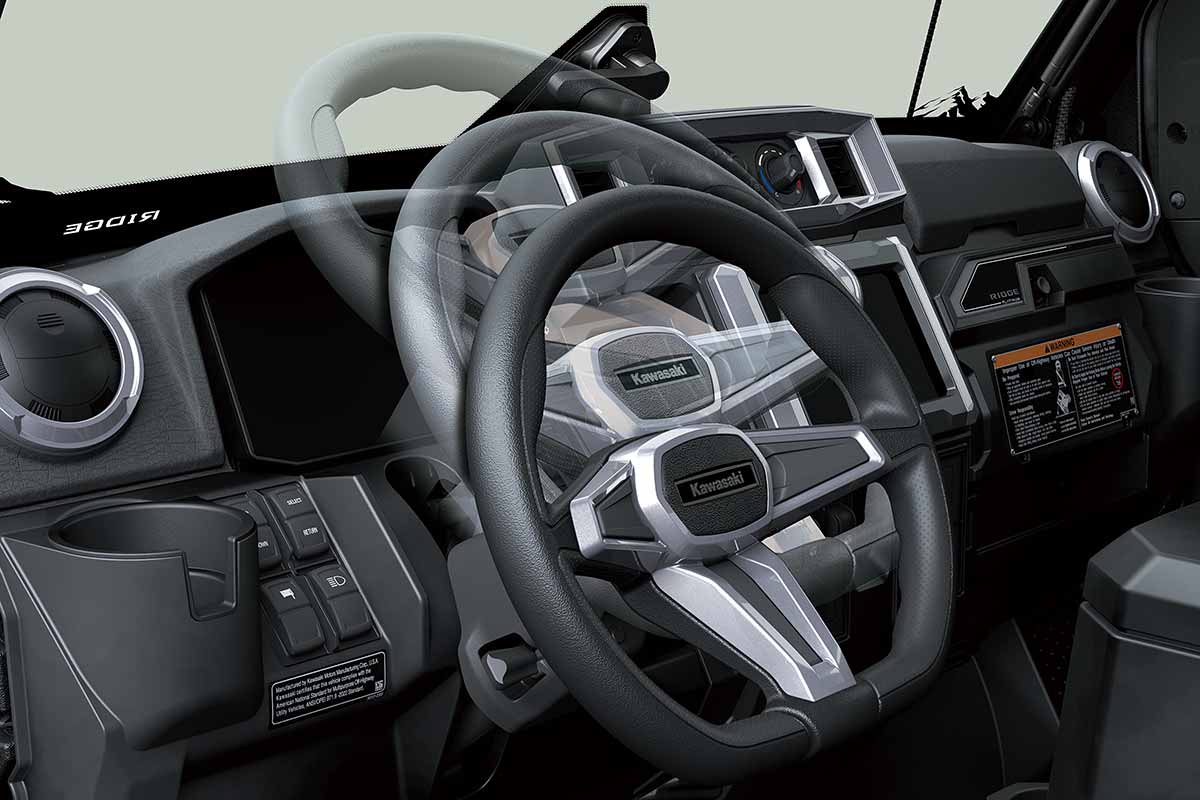

Steering Rack and pinion with Electric Power Steering
Rake / Trail 4.3° / -
Steering Angle (L/R) 44° (IN) / 30° (OUT), 30° (OUT) / 44° (IN)

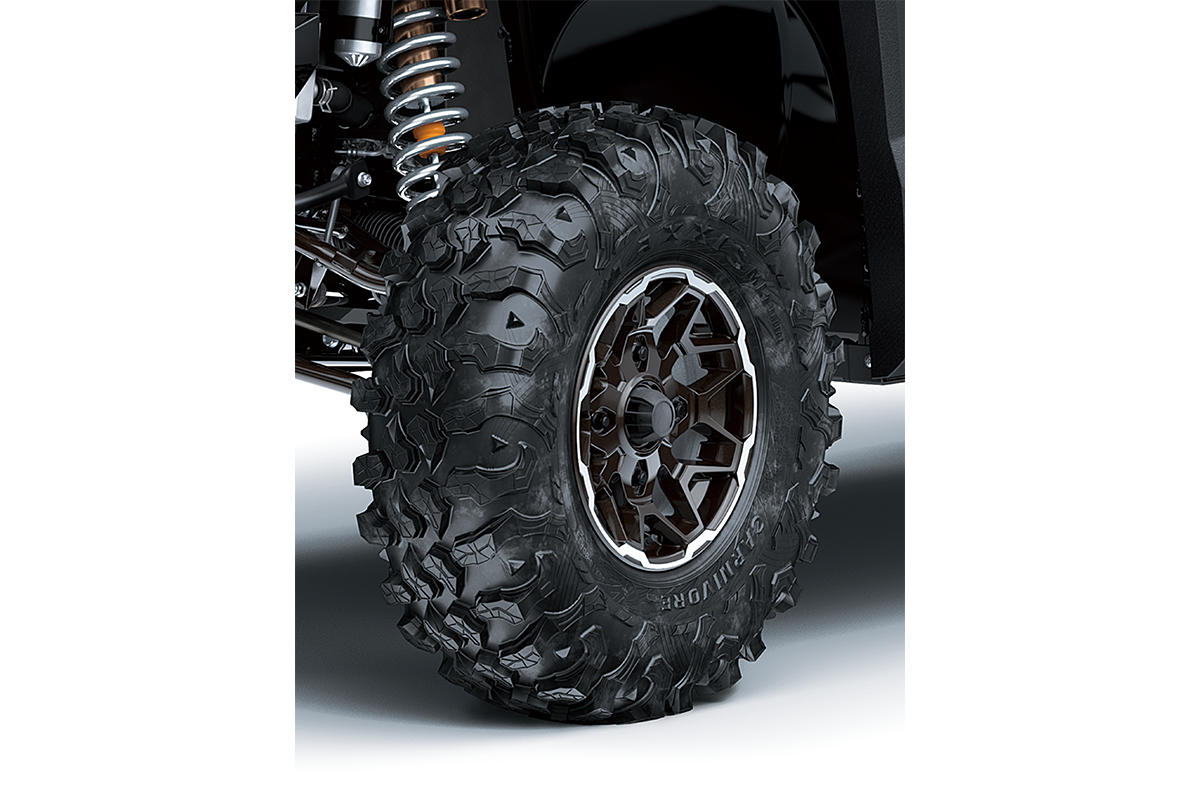

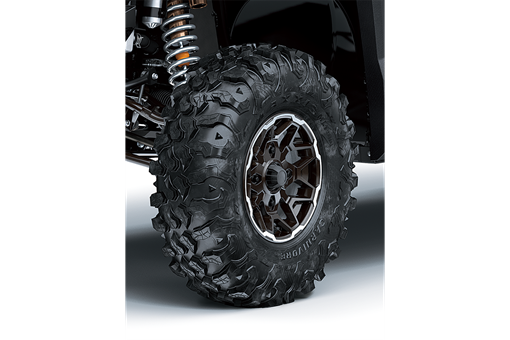

Front Tires MAXXIS Carnivore 30 x 10.00R14 8PR
Rear Tires MAXXIS Carnivore 30 x 10.00R14 8PR
Front Brakes Dual discs with two-piston calipers
Rear Brakes Dual discs with single-piston calipers
Rear Brake Dual discs with single-piston calipers
Parking Brake Dual discs (mechanical)

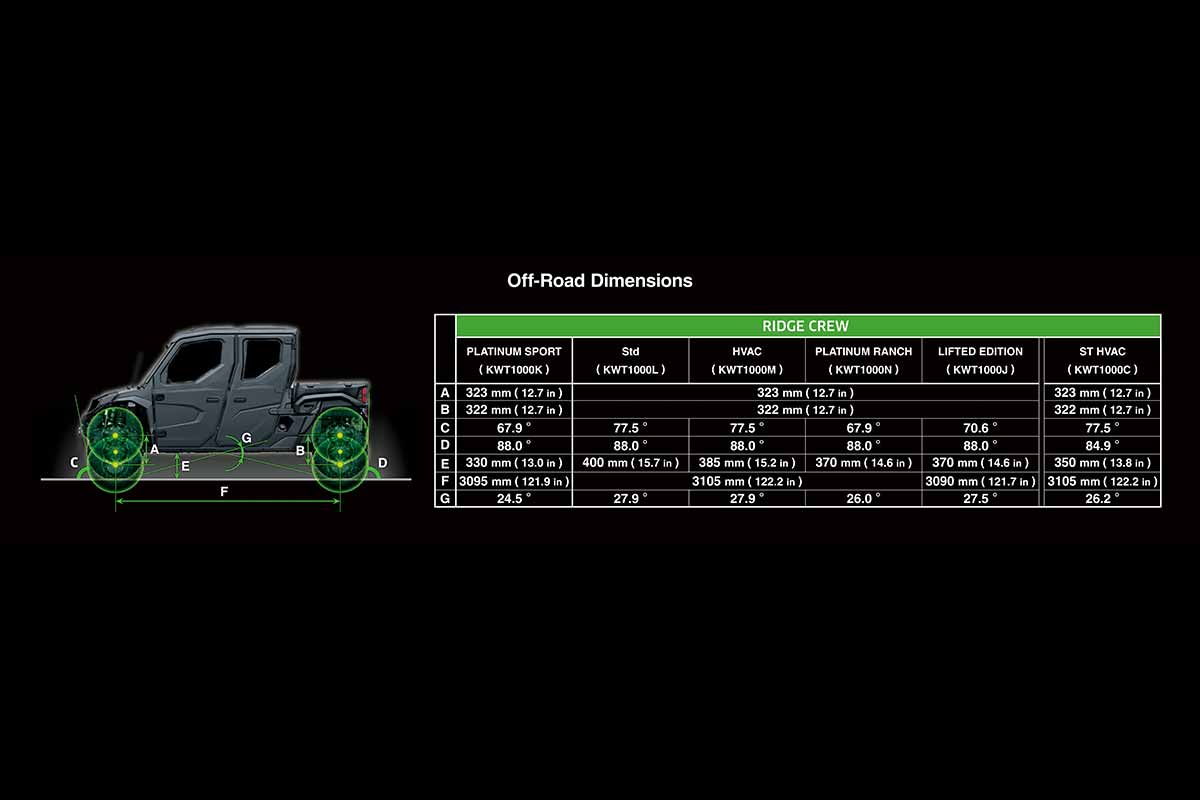

Dimensions (LxWxH) 3,980 x 1,625 x 2,075 mm (156.7 x 64.0 x 81.7 in)
Wheelbase 3,095 mm (121.9 in)

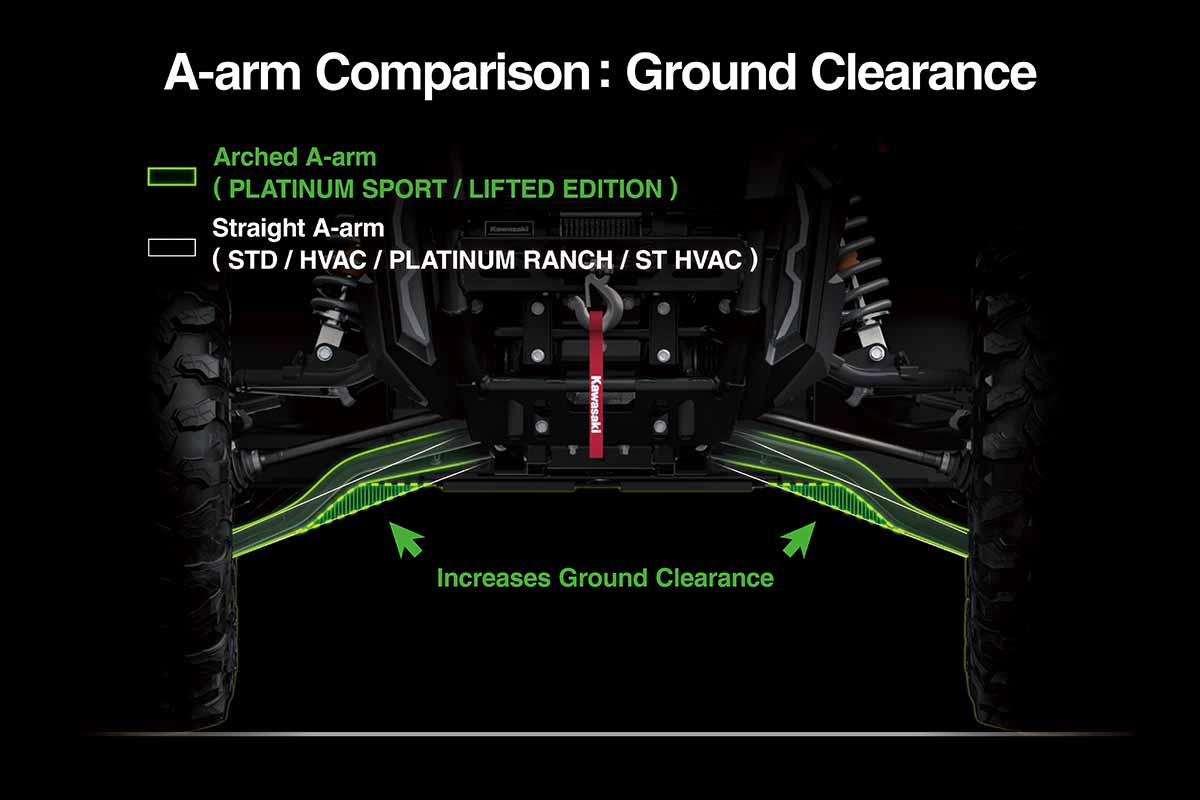

Road Clearance 320/330 mm (standard/max preload) (12.6/13.0 in (standard/max preload))
Seat Height 890 (F) / 890 (R) mm (35.0 (F) / 35.0 (R) in)
Curb Weight* 1,200 kg (2,646 lb)
Estimated Dry Weight** 1,150 kg (2,535 lb)
Fuel Capacity 49 litres
Tread (F/R) 1,380 mm (54.3 in) / 1,370 mm (53.9 in)

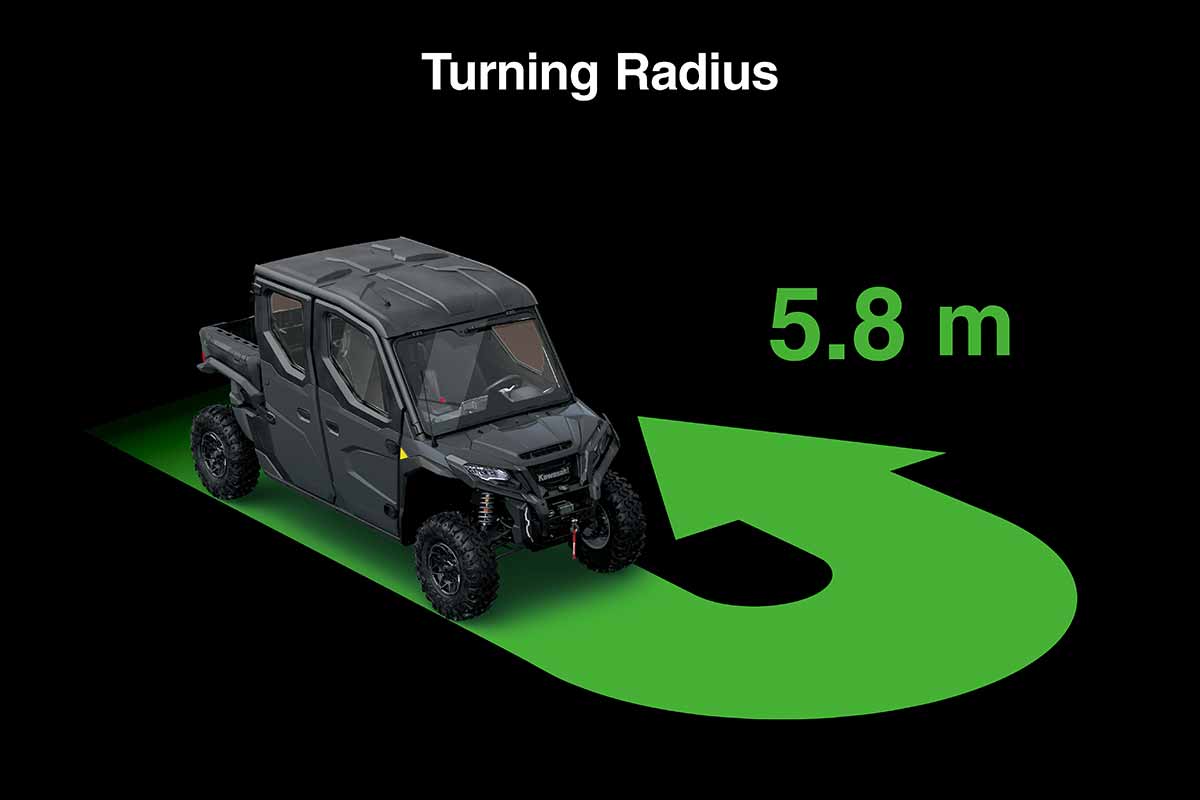

Turning Radius 5.8 m (19.0 ft)
Cargo Bed Dimensions (LxWxH) 888 x 1,054 x 310 mm (35.0 x 41.5 x 12.2 in)
Cargo Bed Capacity 453 kg (1,000 lb)

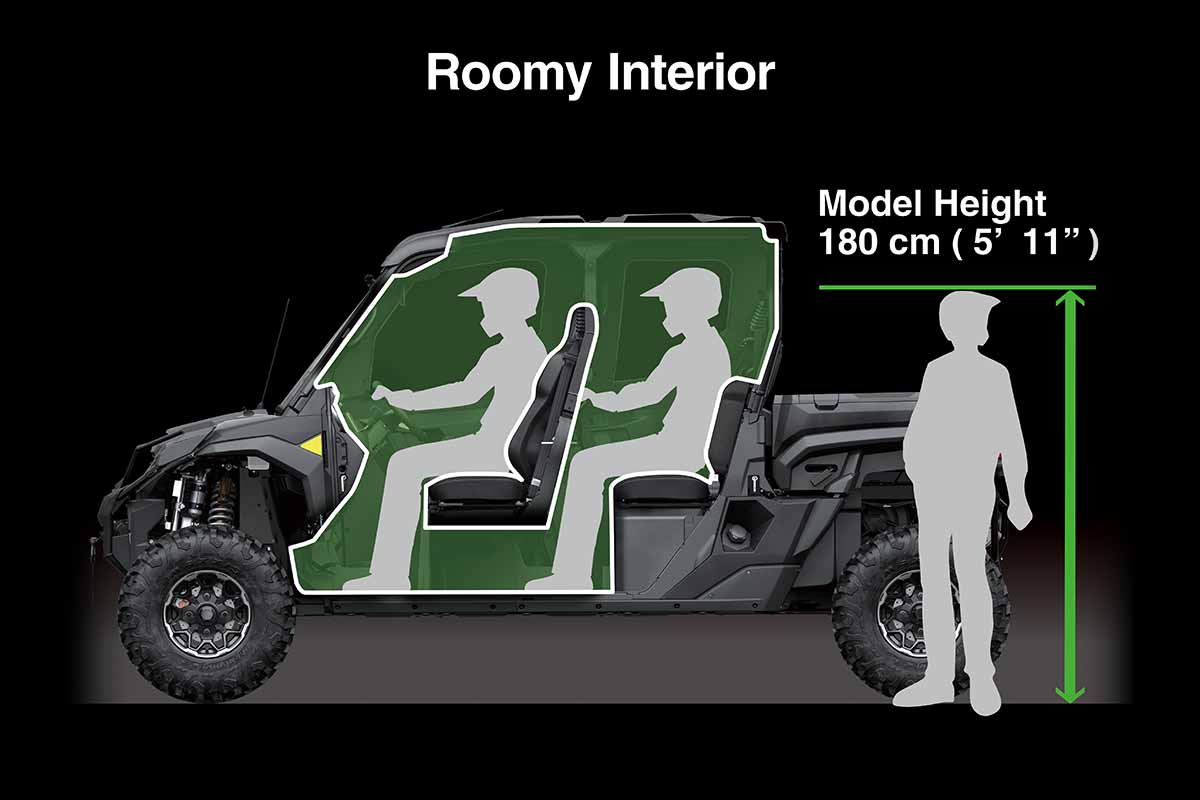

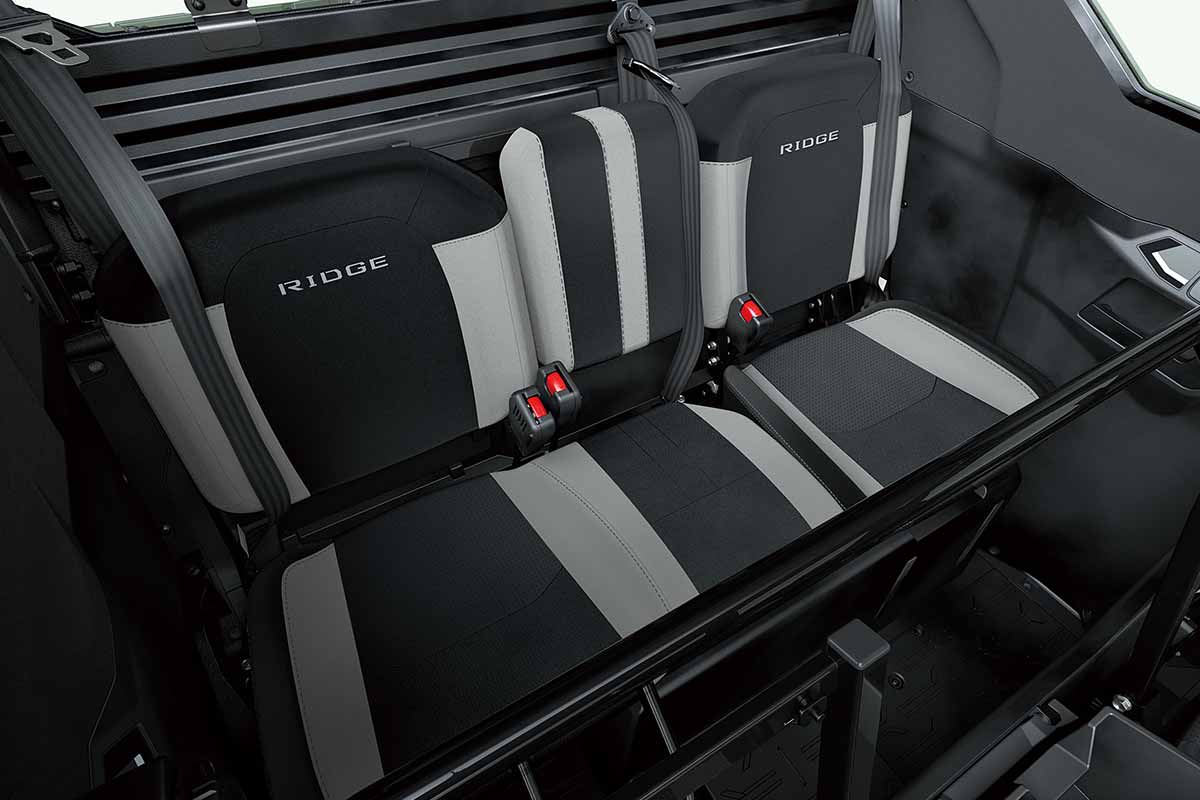

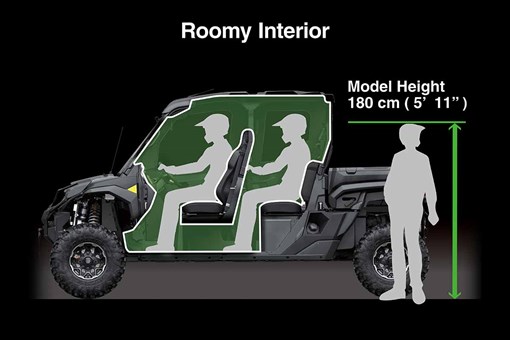

Seating Capacity 5
Vehicle Load Capacity 592* kg (1,305 lb) (*Max. permissible load figures for speeds up to 48 km/h. Above 48 km/h, max. permissible load is 293 kg (645 lb). Above 69 km/h, max. permissible load is 152 kg (335 lb).)
Towing Capacity 1,134 kg (2,500 lb)

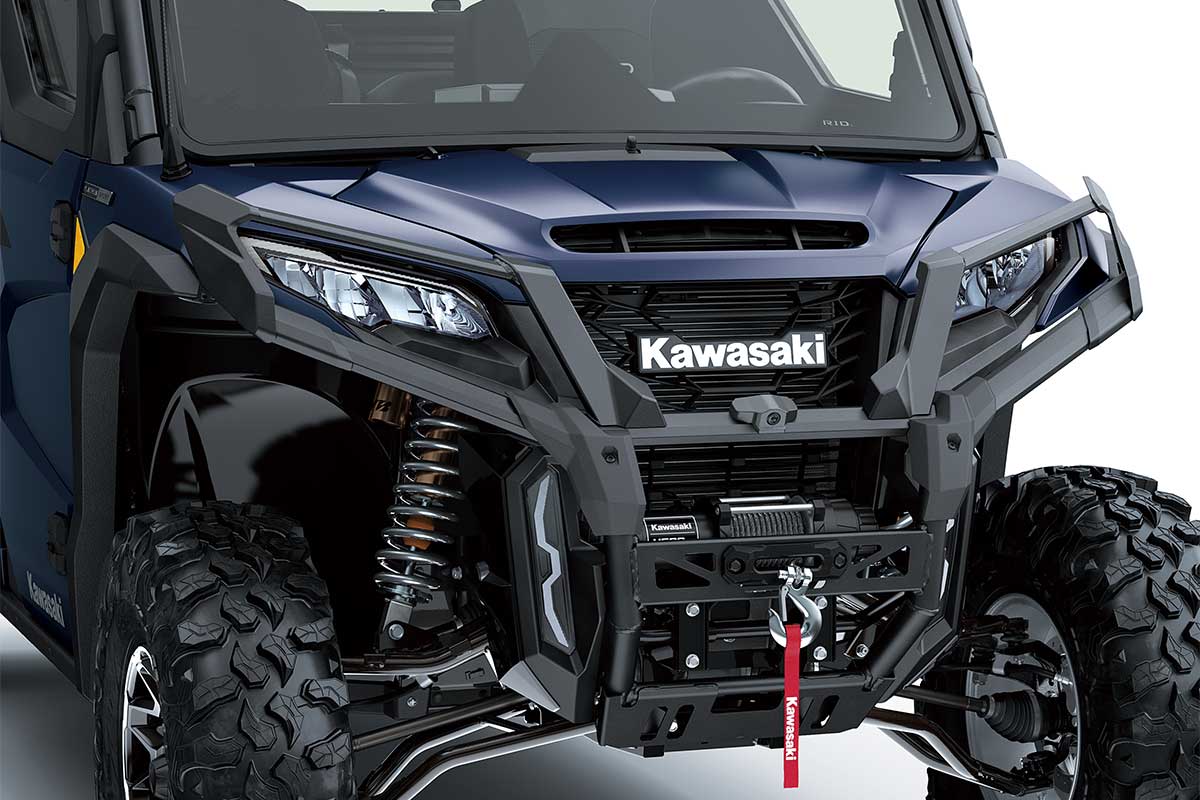

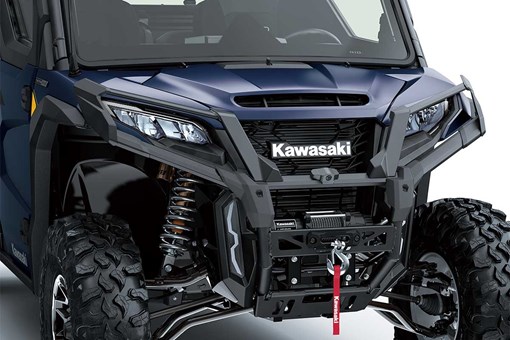

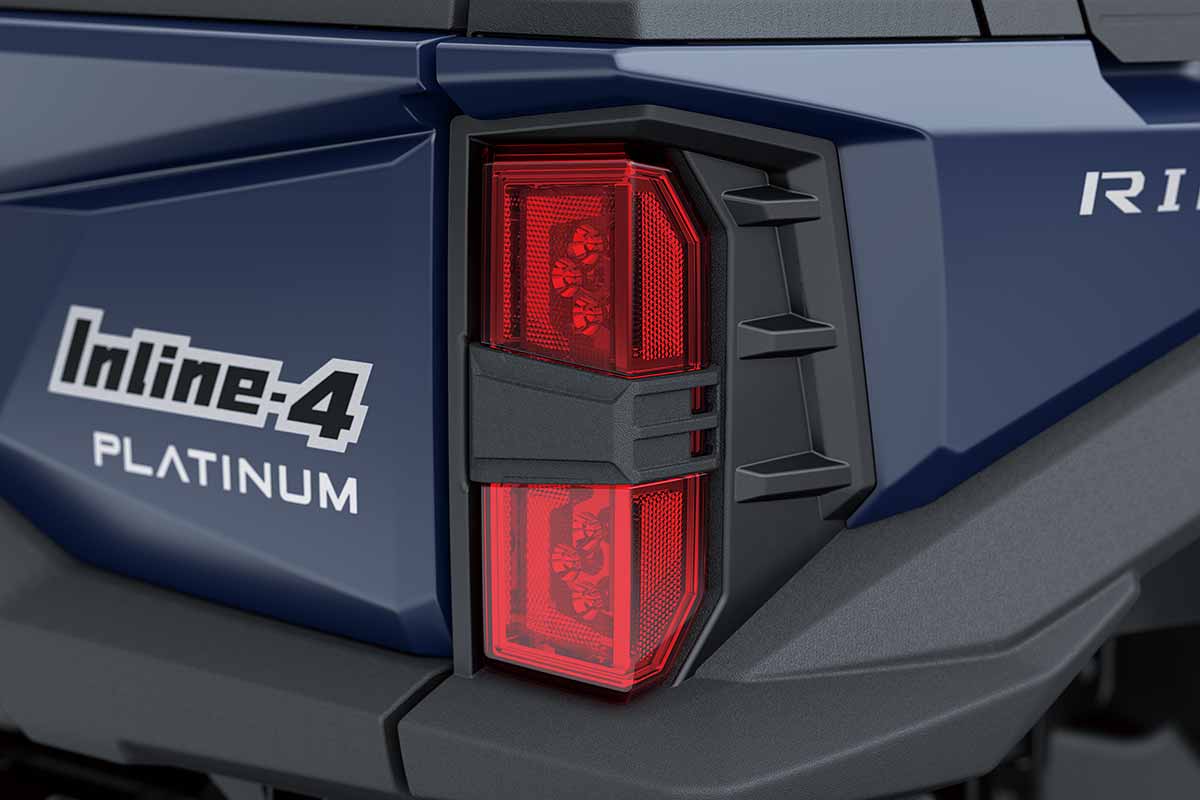

Lighting 2x LED headlights, 2x accent lights

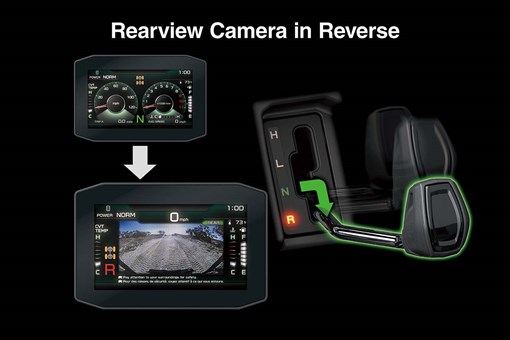

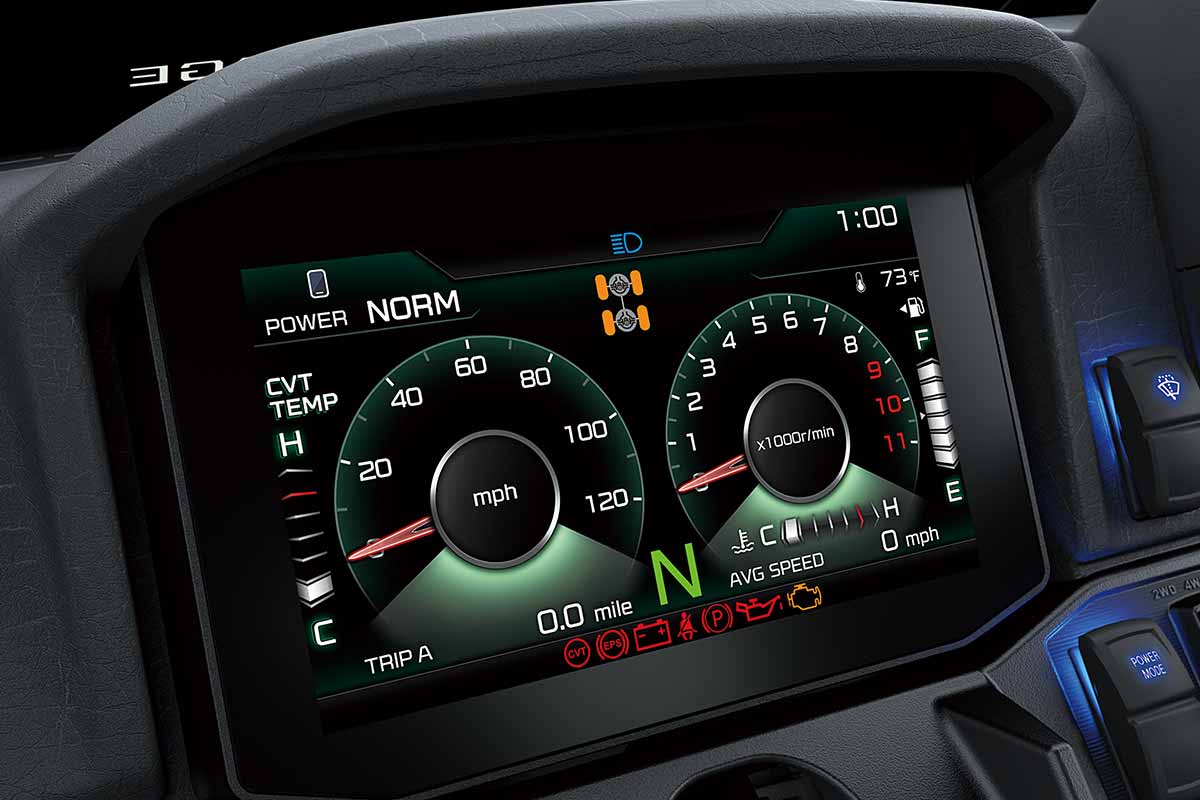

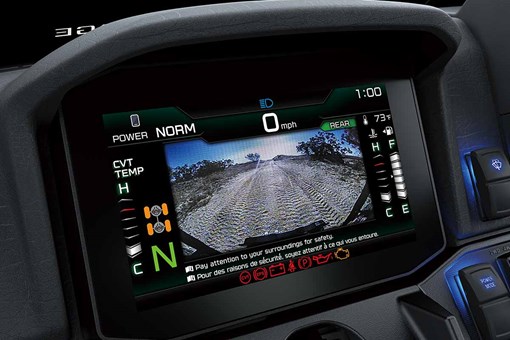

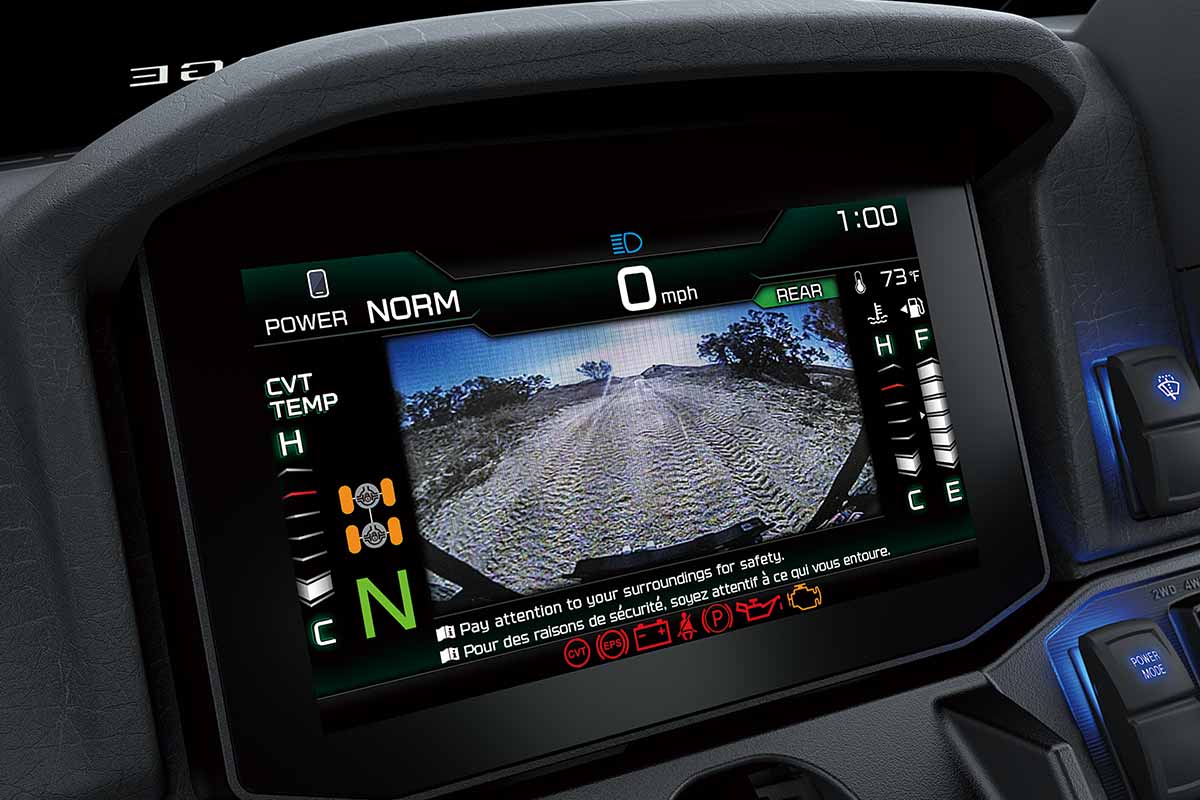

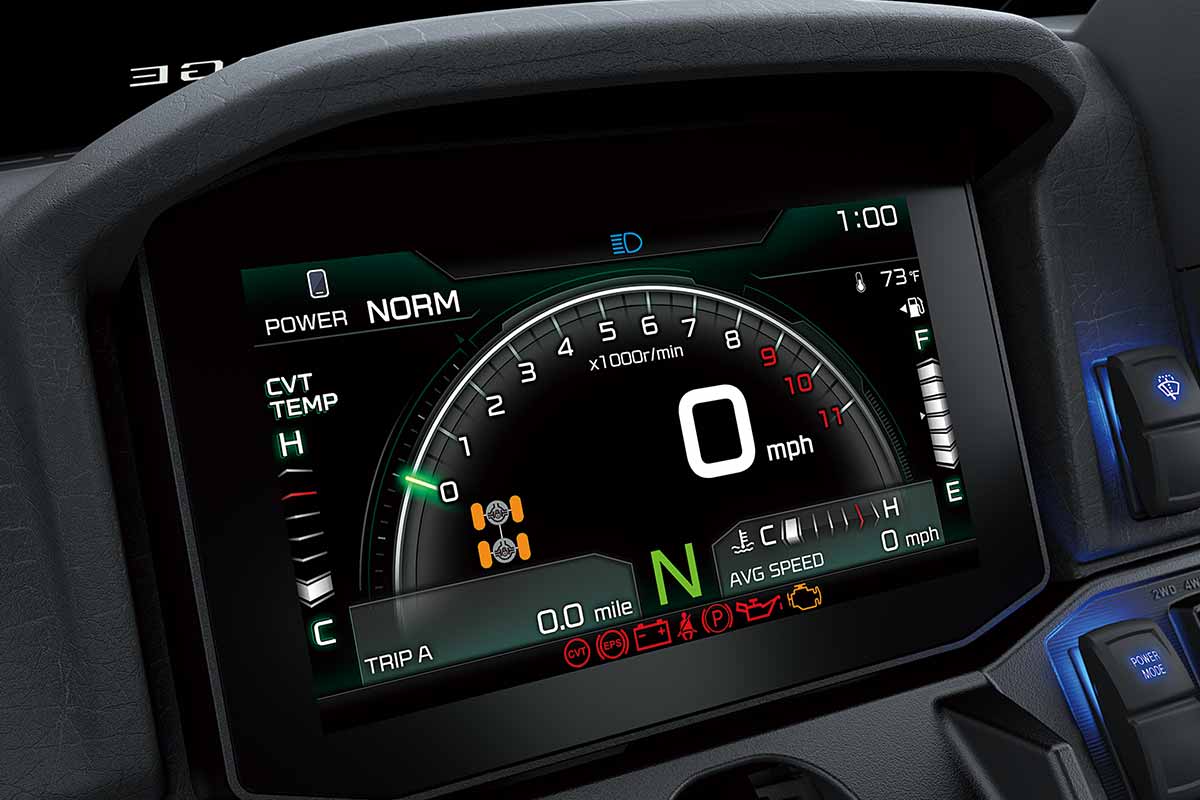

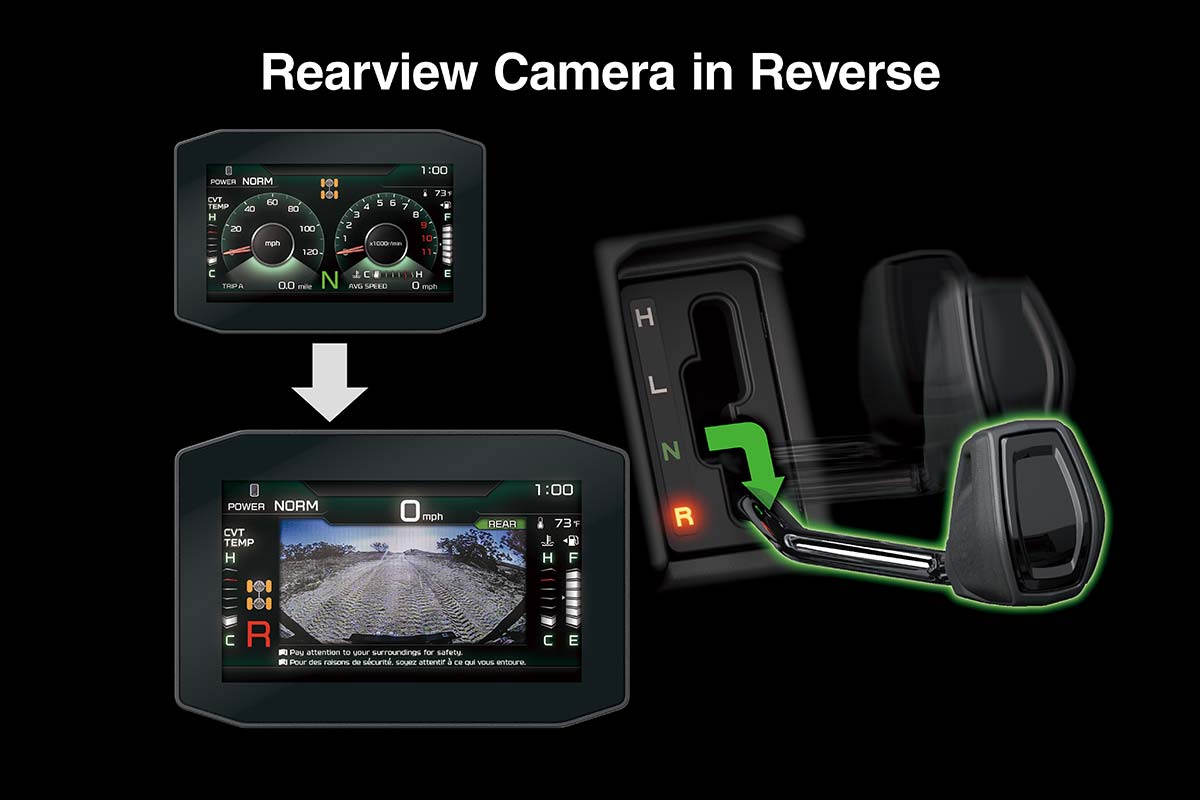

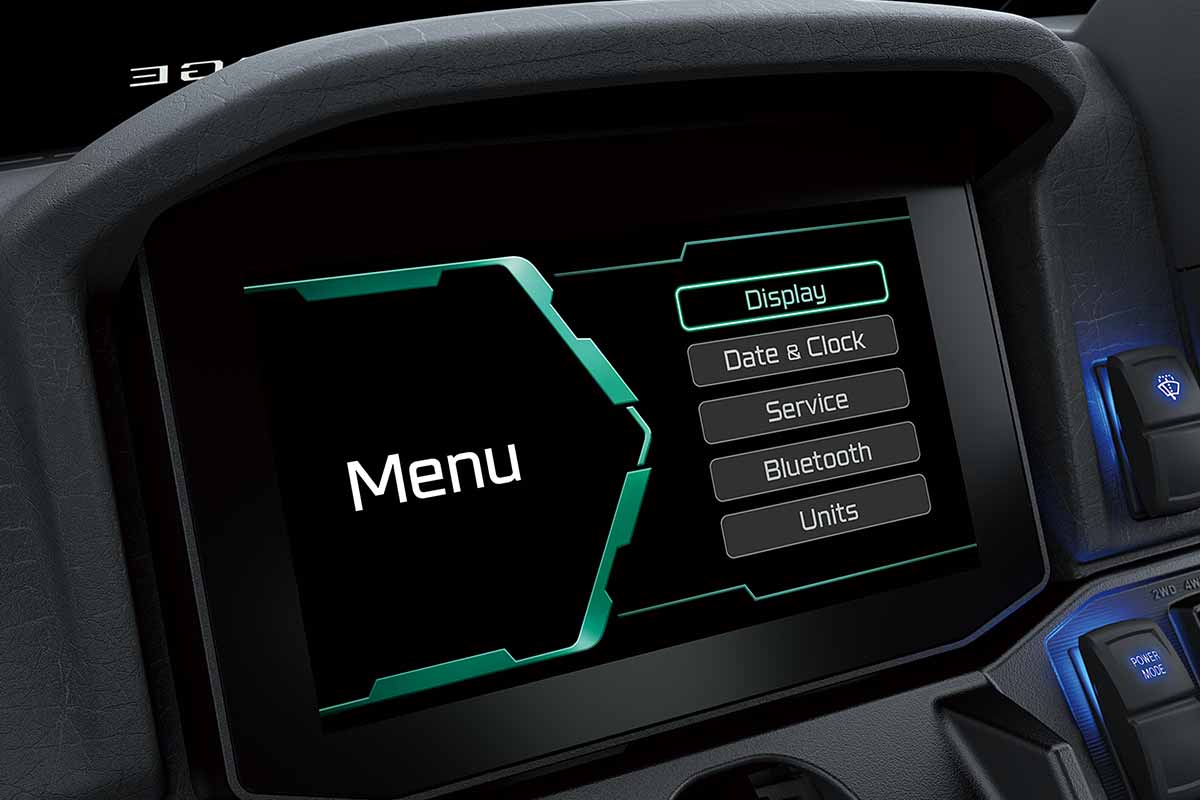

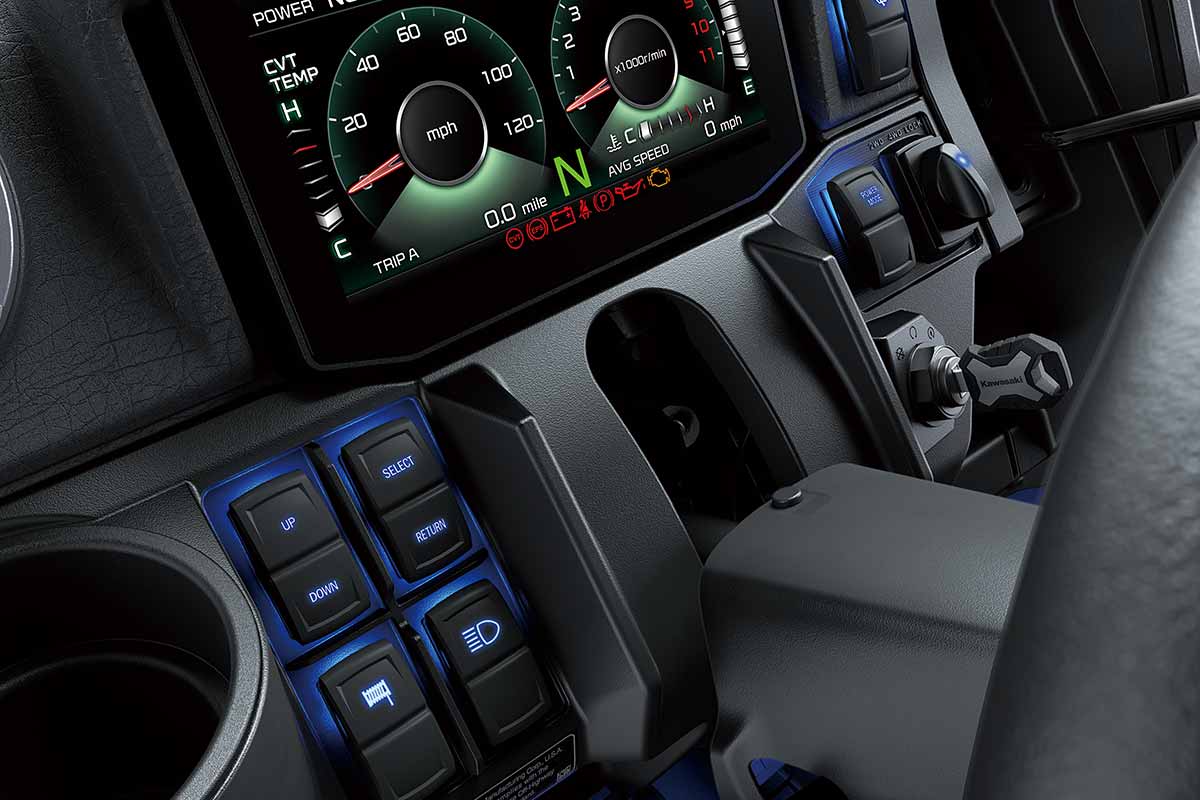

Instrumentation 8” high-grade full-colour TFT LCD screen with speedometer, tachometer, fuel gauge, gear indicator (L, H, N, R), Driving Mode (2WD/4WD/4WD+Diff Lock), Power Mode (Work/Normal/Sport), clock, CVT temperature; selectable display that includes: digital tachometer, odometer, dual trip meters, total time, trip time, average speed, water temperature, battery voltage; Bluetooth indicator, Economical Riding Indicator, maintenance reminder (2 driver-selectable reminders), and a range of indicators and warning lamps
Warranty 36 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
