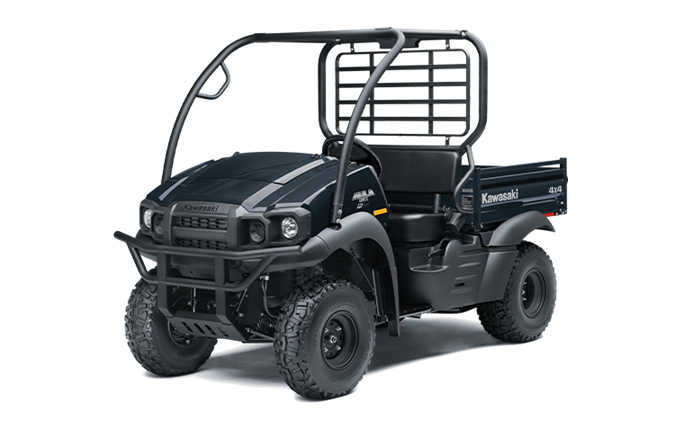

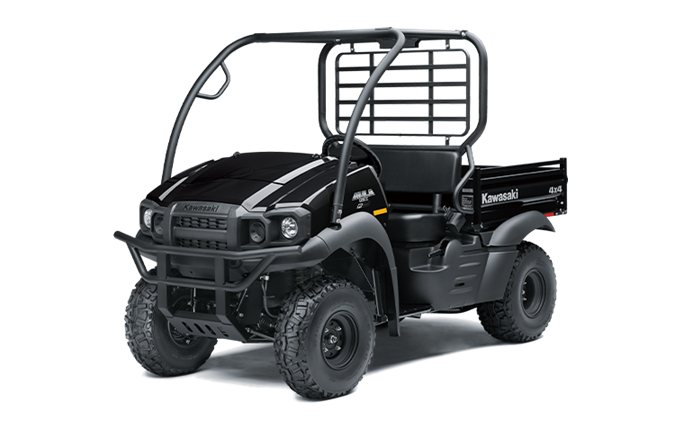

Actual product may vary from image
-
MSRP$12,199
Destination Charge $1,395
Dealer sets the actual destination charge, your price may vary.
Specifications and pricing are subject to change.
MODEL SPECS |
| Engine | 401cc, air-cooled, 4-stroke, OHV single |
| Bore x Stroke | 82.0 x 76.0 mm |
| Compression Ratio | 8.6:1 |
| Fuel System | Fuel injection: ø23 mm x 1 |
| Ignition | Battery & coil |
| Starting | Electric |
| Lubrication | Forced lubrication, wet sump |
| Transmission | 2-speed automatic, forward/reverse |
| Final Drive | Gear, selectable 2WD/4WD, dual-mode differential |
| Frame | Ladder type, tubular steel |
| Front Suspension / Wheel Travel | Independent, MacPherson strut / 78 mm (3.1 in) |
| Rear Suspension / Wheel Travel | Unit swing axle / 79 mm (3.1 in) |
| Steering | Rack and pinion |
| Rake / Trail | 9° / 45 mm |
| Steering Angle (L/R) | 43° (IN) / 38° (OUT), 43° (IN) / 38° (OUT) |
| Front Tires | 24 x 9.00-10 |
| Rear Tires | 24 x 11.00-10 |
| Front Brakes | Dual hydraulic drums |
| Rear Brakes | Dual hydraulic drums |
| Parking Brake | Mechanical, on rear wheels |
| Dimensions (LxWxH) | 2,710 x 1,335 x 1,800 mm (106.7 x 52.6 x 70.9 in) |
| Wheelbase | 1,780 mm (70.1 in) |
| Road Clearance | 170 mm (6.7 in) |
| Seat Height | 780 mm (30.7 in) |
| Curb Weight* | 468 kg (1,032 lb) |
| Estimated Dry Weight** | 450 kg (992 lb) |
| Fuel Capacity | 16 litres |
| Tread (F/R) | 1,055 mm (41.5 in) / 1,000 mm (39.4 in) |
| Turning Radius | 3.3 m (10.8 ft) |
| Cargo Bed Dimensions (LxWxH) | 905 x 1,040 x 245 mm (35.6 x 40.9 x 9.6 in) |
| Cargo Bed Capacity | 181 kg (400 lb) |
| Seating Capacity | 2 |
| Vehicle Load Capacity | 415 kg (915 lb) |
| Towing Capacity | 500 kg (1,100 lb) |
| Lighting | 2x halogen headlights |
| Instrumentation | Digital fuel gauge, hour meter |
| Warranty | 36 months |
| Kawasaki Protection Plus | 12 / 24 / 36 / 48 months |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2020 Canadian Kawasaki Motors, Inc.
Specifications subject to change.
